Wheel Nuts, Bolts & Locks

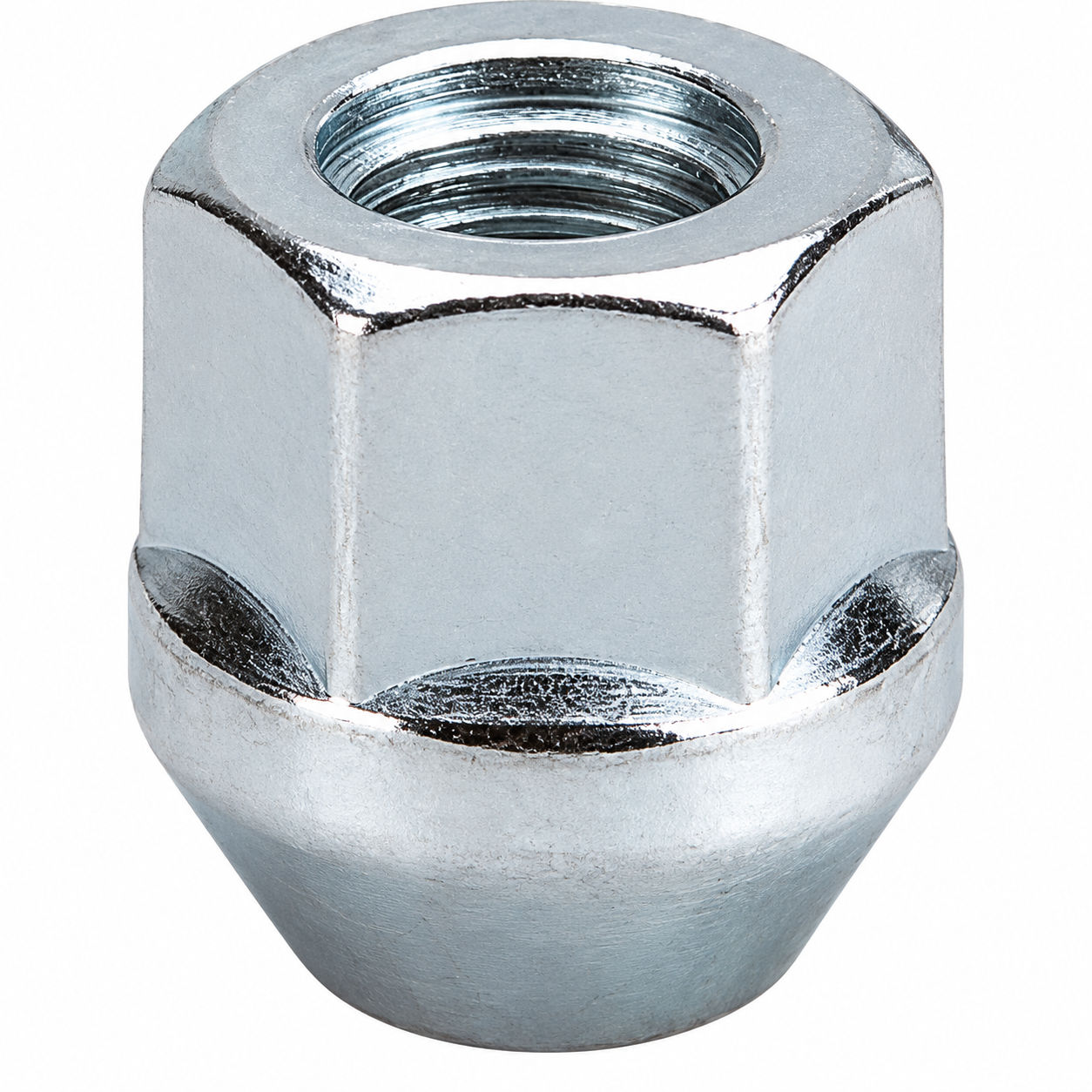

Wheel Lug Nuts
Wheel lug nuts cover open, closed, spline, duplex, washer and tuner formats. Thread, seat, height and drive arrangement determine compatibility.
Key Specifications
- Series
- Wheel Lug Nuts
- Listed configurations
- 49
- Selection
- Style / thread · Dimensions · Box / case quantity
- Catalogue reference
- Tire Service Products, pp. 85
Product Details
Match thread and seat first, then check wheel recess and key clearance. Inch thread entries without pitch need confirmation. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences
- BT-001: Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; 7/16 in (pitch not listed).
- BT-009: Bulge acorn; 9/16 in (pitch not listed).
- BT-113: Heat-treated tuner nut; M14 × 1.50.
Applications
Typical application
Replacement wheel hardware and distributor fitment assortments.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Style / thread | Dimensions | Box / case quantity | Quantity (pcs) | |
|---|---|---|---|---|---|
| BT-001 — Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; 7/16 in (pitch not listed) | Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; 7/16 in (pitch not listed) | Height 0.84 in / 21.336 mm | 50 / 500 | ||
| BT-001 — Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; 1/2 in (pitch not listed) | Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; 1/2 in (pitch not listed) | Height 0.84 in / 21.336 mm | 50 / 500 | ||
| BT-001 — Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M12 × 1.25 | Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M12 × 1.25 | Height 0.84 in / 21.336 mm | 50 / 500 | ||
| BT-001 — Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M12 × 1.50 | Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M12 × 1.50 | Height 0.84 in / 21.336 mm | 50 / 500 | ||
| BT-001 — Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M12 × 1.75 | Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M12 × 1.75 | Height 0.84 in / 21.336 mm | 50 / 500 | ||
| BT-001 — Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M14 × 1.50 | Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M14 × 1.50 | Height 0.84 in / 21.336 mm | 50 / 500 | ||
| BT-001 — Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M14 × 2.00 | Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; M14 × 2.00 | Height 0.84 in / 21.336 mm | 50 / 500 | ||
| BT-001 — Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; 9/16 in (pitch not listed) | Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; 9/16 in (pitch not listed) | Height 0.84 in / 21.336 mm | 50 / 500 | ||
| BT-005 — Closed bulge acorn; 7/16 in (pitch not listed) | Closed bulge acorn; 7/16 in (pitch not listed) | Height 1.38 in / 35.052 mm | 50 / 500 | ||
| BT-005 — Closed bulge acorn; 1/2 in (pitch not listed) | Closed bulge acorn; 1/2 in (pitch not listed) | Height 1.38 in / 35.052 mm | 50 / 500 | ||
| BT-005 — Closed bulge acorn; M12 × 1.25 | Closed bulge acorn; M12 × 1.25 | Height 1.38 in / 35.052 mm | 50 / 500 | ||
| BT-005 — Closed bulge acorn; M12 × 1.50 | Closed bulge acorn; M12 × 1.50 | Height 1.38 in / 35.052 mm | 50 / 500 | ||
| BT-005 — Closed bulge acorn; M12 × 1.75 | Closed bulge acorn; M12 × 1.75 | Height 1.38 in / 35.052 mm | 50 / 500 | ||
| BT-005 — Closed bulge acorn; M14 × 1.50 | Closed bulge acorn; M14 × 1.50 | Height 1.38 in / 35.052 mm | 50 / 500 | ||
| BT-007 — Bulge acorn; 1/2 in (pitch not listed) | Bulge acorn; 1/2 in (pitch not listed) | Height 1.75 in / 44.45 mm | 40 / 400 | ||
| BT-007 — Bulge acorn; M12 × 1.50 | Bulge acorn; M12 × 1.50 | Height 1.75 in / 44.45 mm | 40 / 400 | ||
| BT-007 — Bulge acorn; M12 × 1.75 | Bulge acorn; M12 × 1.75 | Height 1.75 in / 44.45 mm | 40 / 400 | ||
| BT-007 — Bulge acorn; M14 × 1.50 | Bulge acorn; M14 × 1.50 | Height 1.75 in / 44.45 mm | 40 / 400 | ||
| BT-007 — Bulge acorn; M14 × 2.00 | Bulge acorn; M14 × 2.00 | Height 1.75 in / 44.45 mm | 40 / 400 | ||
| BT-007 — Bulge acorn; 9/16 in (pitch not listed) | Bulge acorn; 9/16 in (pitch not listed) | Height 1.75 in / 44.45 mm | 40 / 400 | ||
| BT-009 — Bulge acorn; M12 × 1.50 | Bulge acorn; M12 × 1.50 | Height 1.9 in / 48.26 mm | 30 / 300 | ||
| BT-009 — Bulge acorn; M12 × 1.75 | Bulge acorn; M12 × 1.75 | Height 1.9 in / 48.26 mm | 30 / 300 | ||
| BT-009 — Bulge acorn; M14 × 1.50 | Bulge acorn; M14 × 1.50 | Height 1.9 in / 48.26 mm | 30 / 300 | ||
| BT-009 — Bulge acorn; M14 × 2.00 | Bulge acorn; M14 × 2.00 | Height 1.9 in / 48.26 mm | 30 / 300 | ||
| BT-009 — Bulge acorn; 9/16 in (pitch not listed) | Bulge acorn; 9/16 in (pitch not listed) | Height 1.9 in / 48.26 mm | 30 / 300 | ||
| BT-307 | Spline acorn; 1/2 in (pitch not listed)Keys K-002 / K-003 listed. | Height 1.37 in / 34.798 mm; width 0.8 in / 20.32 mm | 50 / 500 | ||
| BT-308 | Spline acorn; M12 × 1.25Keys K-002 / K-003 listed. | Height 1.37 in / 34.798 mm; width 0.8 in / 20.32 mm | 50 / 500 | ||
| BT-309 | Spline acorn; M12 × 1.50Keys K-002 / K-003 listed. | Height 1.37 in / 34.798 mm; width 0.8 in / 20.32 mm | 50 / 500 | ||
| BT-310 | Spline acorn; M12 × 1.75Keys K-002 / K-003 listed. | Height 1.37 in / 34.798 mm; width 0.8 in / 20.32 mm | 50 / 500 | ||
| BT-304 | Open-end spline; 1/2 in (pitch not listed)Key K-002 listed. | Height 0.84 in / 21.336 mm; width 0.8 in / 20.32 mm | 50 / 500 | ||
| BT-305 | Open-end spline; M12 × 1.25Key K-002 listed. | Height 0.84 in / 21.336 mm; width 0.8 in / 20.32 mm | 50 / 500 | ||
| BT-306 | Open-end spline; M12 × 1.50Key K-002 listed. | Height 0.84 in / 21.336 mm; width 0.8 in / 20.32 mm | 50 / 500 | ||
| BT-301 | Short duplex spline; M14 × 1.50Key K-001 listed. | Height 1.37 in / 34.798 mm; width 0.9 in / 22.86 mm | 50 / 500 | ||
| BT-302 | Short duplex spline; M14 × 2.00Key K-001 listed. | Height 1.37 in / 34.798 mm; width 0.9 in / 22.86 mm | 50 / 500 | ||
| BT-303 | Short duplex spline; 9/16 in (pitch not listed)Key K-001 listed. | Height 1.37 in / 34.798 mm; width 0.9 in / 22.86 mm | 50 / 500 | ||
| BT-126 | Long duplex spline; M12 × 1.50Key K-001 listed. | Height 2 in / 50.8 mm; width 0.9 in / 22.86 mm | 40 / 400 | ||
| BT-127 | Long duplex spline; M12 × 1.75Key K-001 listed. | Height 2 in / 50.8 mm; width 0.9 in / 22.86 mm | 40 / 400 | ||
| BT-129 | Long duplex spline; M14 × 1.50Key K-001 listed. | Height 2 in / 50.8 mm; width 0.9 in / 22.86 mm | 40 / 400 | ||
| BT-130 | Long duplex spline; M14 × 2.00Key K-001 listed. | Height 2 in / 50.8 mm; width 0.9 in / 22.86 mm | 40 / 400 | ||
| BT-131 | Long duplex spline; 9/16 in (pitch not listed)Key K-001 listed. | Height 2 in / 50.8 mm; width 0.9 in / 22.86 mm | 40 / 400 | ||
| BT-311 | Washer nut; M12 × 1.50Confirm seat and washer dimensions. | Not stated | 40 / 400 | ||
| BT-312 | Washer nut; M12 × 1.75Confirm seat and washer dimensions. | Not stated | 40 / 400 | ||
| BT-313 | Washer nut; M14 × 1.50Confirm seat and washer dimensions. | Not stated | 40 / 400 | ||
| BT-314 | Washer nut; M14 × 2.00Confirm seat and washer dimensions. | Not stated | 40 / 400 | ||
| BT-315 | Washer nut; 9/16 in (pitch not listed)Confirm seat and washer dimensions. | Not stated | 40 / 400 | ||
| BT-108 | Heat-treated tuner nut; 1/2 in (pitch not listed)Keys K-004 / K-005 listed. | Height 2 in / 50.8 mm; width 0.748 in / 18.9992 mm | 50 / 500 | ||
| BT-109 | Heat-treated tuner nut; M12 × 1.25Keys K-004 / K-005 listed. | Height 2 in / 50.8 mm; width 0.748 in / 18.9992 mm | 50 / 500 | ||
| BT-110 | Heat-treated tuner nut; M12 × 1.50Keys K-004 / K-005 listed. | Height 2 in / 50.8 mm; width 0.748 in / 18.9992 mm | 50 / 500 | ||
| BT-113 | Heat-treated tuner nut; M14 × 1.50Keys K-004 / K-005 listed. | Height 2 in / 50.8 mm; width 0.748 in / 18.9992 mm | 30 / 300 |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering. Text after the dash identifies a configuration; it is not a separate manufacturer part number.
Include the complete configuration and quantity for each selected model.
Frequently Asked Questions
How do I choose the right wheel lug nuts configuration?
Match thread and seat first, then check wheel recess and key clearance. Inch thread entries without pitch need confirmation.
What is listed for BT-001?
Open-end bulge acorn; 3/4 in / 19.05 mm hex; 60° seat; 7/16 in (pitch not listed). Height 0.84 in / 21.336 mm. 50 / 500.
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
