Wheel Nuts, Bolts & Locks

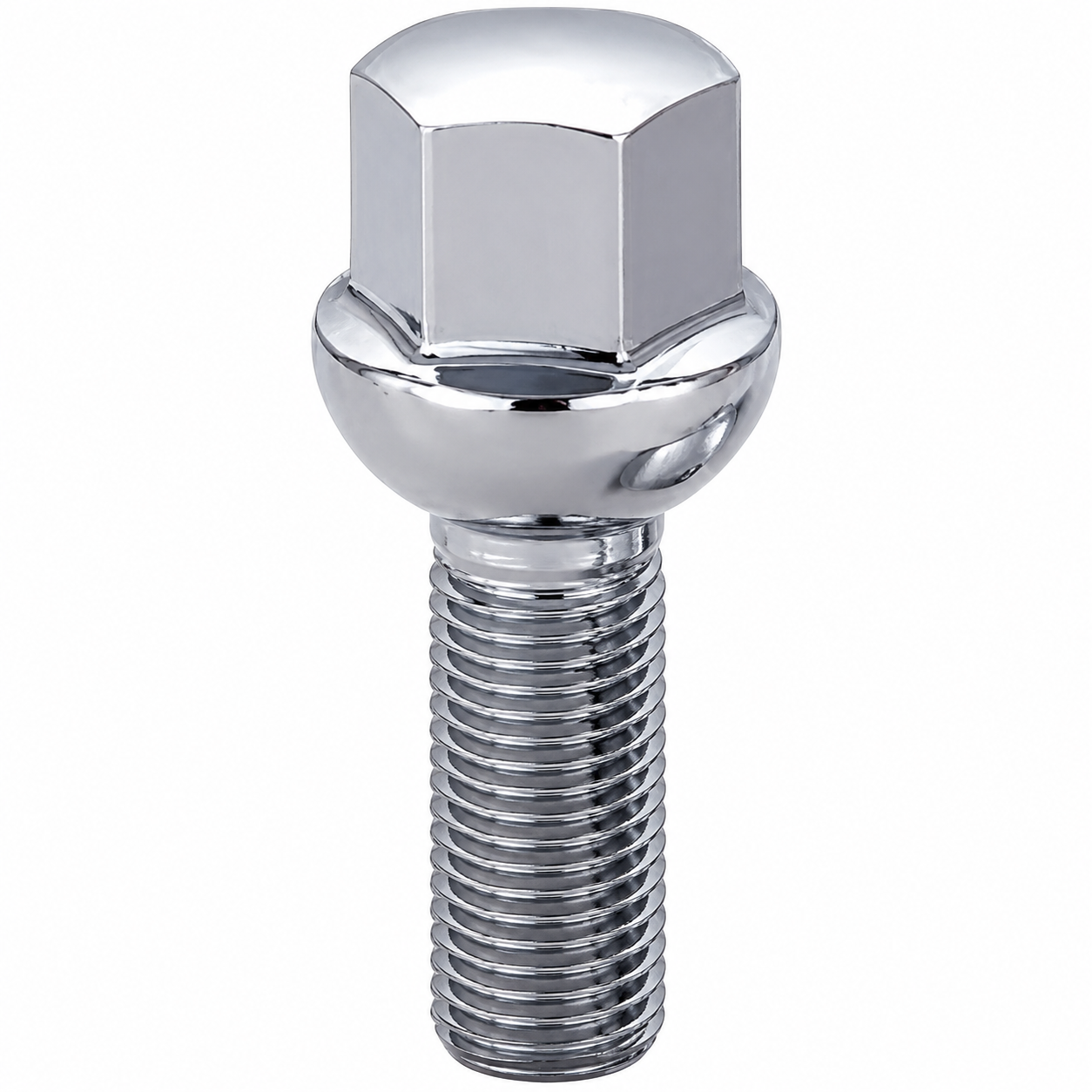

Wheel Lug Bolts
Wheel lug bolts are listed in ball-seat, conical-seat and keyed formats. The table separates usable thread length from total length.
Key Specifications
- Series
- Wheel Lug Bolts
- Listed configurations
- 48
- Selection
- Seat / thread · Thread / total length · Drive specification
- Catalogue reference
- Tire Service Products, pp. 86
Product Details
Choose the correct seat and thread pitch, then verify thread engagement for the wheel and hub. Similar total lengths can conceal different thread lengths. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences
- BT-088: Conical tuner bolt; M12 × 1.25.
- BT-064: Ball-seat bolt; M12 × 1.25.
- BT-057: 60° conical-seat bolt; M14 × 1.50.
Applications
Typical application
Compatible passenger-wheel hardware replacement.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Seat / thread | Thread / total length | Drive specification | Quantity (pcs) | |
|---|---|---|---|---|---|
| BT-088 | Conical tuner bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | 6-point drive; K-004 / K-005 listed | ||
| BT-089 | Conical tuner bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | 6-point drive; K-004 / K-005 listed | ||
| BT-090 | Conical tuner bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | 6-point drive; K-004 / K-005 listed | ||
| BT-091 | Conical tuner bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 57 mm / 2.244 in | 6-point drive; K-004 / K-005 listed | ||
| BT-092 | Conical tuner bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 57 mm / 2.244 in | 6-point drive; K-004 / K-005 listed | ||
| BT-093 | Conical tuner bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 57 mm / 2.244 in | 6-point drive; K-004 / K-005 listed | ||
| BT-094 | Conical tuner bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 64 mm / 2.520 in | 6-point drive; K-004 / K-005 listed | ||
| BT-095 | Conical tuner bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 64 mm / 2.520 in | 6-point drive; K-004 / K-005 listed | ||
| BT-096 | Conical tuner bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 64 mm / 2.520 in | 6-point drive; K-004 / K-005 listed | ||
| BT-079 | Mag-style bolt (catalogue heading: closed-end mag-style nuts); M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | K-001 listed; confirm seat | ||
| BT-080 | Mag-style bolt (catalogue heading: closed-end mag-style nuts); M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | K-001 listed; confirm seat | ||
| BT-081 | Mag-style bolt (catalogue heading: closed-end mag-style nuts); M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | K-001 listed; confirm seat | ||
| BT-082 | Mag-style bolt (catalogue heading: closed-end mag-style nuts); M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 54 mm / 2.126 in | K-001 listed; confirm seat | ||
| BT-083 | Mag-style bolt (catalogue heading: closed-end mag-style nuts); M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 54 mm / 2.126 in | K-001 listed; confirm seat | ||
| BT-084 | Mag-style bolt (catalogue heading: closed-end mag-style nuts); M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 54 mm / 2.126 in | K-001 listed; confirm seat | ||
| BT-085 | Mag-style bolt (catalogue heading: closed-end mag-style nuts); M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 61 mm / 2.402 in | K-001 listed; confirm seat | ||
| BT-086 | Mag-style bolt (catalogue heading: closed-end mag-style nuts); M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 61 mm / 2.402 in | K-001 listed; confirm seat | ||
| BT-087 | Mag-style bolt (catalogue heading: closed-end mag-style nuts); M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 61 mm / 2.402 in | K-001 listed; confirm seat | ||
| BT-058 | Ball-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | 19 mm / 0.748 in hex | ||
| BT-059 | Ball-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | 19 mm / 0.748 in hex | ||
| BT-060 | Ball-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | 19 mm / 0.748 in hex | ||
| BT-061 | Ball-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 57 mm / 2.244 in | 19 mm / 0.748 in hex | ||
| BT-062 | Ball-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 57 mm / 2.244 in | 19 mm / 0.748 in hex | ||
| BT-063 | Ball-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 57 mm / 2.244 in | 19 mm / 0.748 in hex | ||
| BT-064 | Ball-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 64 mm / 2.520 in | 19 mm / 0.748 in hex | ||
| BT-065 | Ball-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 64 mm / 2.520 in | 19 mm / 0.748 in hex | ||
| BT-066 | Ball-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 64 mm / 2.520 in | 19 mm / 0.748 in hex | ||
| BT-067 | Ball-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 41 mm / 1.614 in; overall 67 mm / 2.638 in | 19 mm / 0.748 in hex | ||
| BT-068 | Ball-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 41 mm / 1.614 in; overall 67 mm / 2.638 in | 19 mm / 0.748 in hex | ||
| BT-069 | Ball-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 41 mm / 1.614 in; overall 67 mm / 2.638 in | 19 mm / 0.748 in hex | ||
| BT-070 | Ball-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 50 mm / 1.969 in; overall 76 mm / 2.992 in | 19 mm / 0.748 in hex | ||
| BT-071 | Ball-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 50 mm / 1.969 in; overall 76 mm / 2.992 in | 19 mm / 0.748 in hex | ||
| BT-072 | Ball-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 50 mm / 1.969 in; overall 76 mm / 2.992 in | 19 mm / 0.748 in hex | ||
| BT-043 | 60° conical-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | 17 mm / 0.669 in hex | ||
| BT-044 | 60° conical-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | 17 mm / 0.669 in hex | ||
| BT-045 | 60° conical-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in | 17 mm / 0.669 in hex | ||
| BT-046 | 60° conical-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 57 mm / 2.244 in | 17 mm / 0.669 in hex | ||
| BT-047 | 60° conical-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 57 mm / 2.244 in | 17 mm / 0.669 in hex | ||
| BT-048 | 60° conical-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 28 mm / 1.102 in; overall 57 mm / 2.244 in | 17 mm / 0.669 in hex | ||
| BT-049 | 60° conical-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 64 mm / 2.520 in | 17 mm / 0.669 in hex | ||
| BT-050 | 60° conical-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 64 mm / 2.520 in | 17 mm / 0.669 in hex | ||
| BT-051 | 60° conical-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 35 mm / 1.378 in; overall 64 mm / 2.520 in | 17 mm / 0.669 in hex | ||
| BT-052 | 60° conical-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 41 mm / 1.614 in; overall 67 mm / 2.638 in | 17 mm / 0.669 in hex | ||
| BT-053 | 60° conical-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 41 mm / 1.614 in; overall 67 mm / 2.638 in | 17 mm / 0.669 in hex | ||
| BT-054 | 60° conical-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 41 mm / 1.614 in; overall 67 mm / 2.638 in | 17 mm / 0.669 in hex | ||
| BT-055 | 60° conical-seat bolt; M12 × 1.25Select seat profile and usable thread length to match the wheel and hub. | Thread 50 mm / 1.969 in; overall 76 mm / 2.992 in | 17 mm / 0.669 in hex | ||
| BT-056 | 60° conical-seat bolt; M12 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 50 mm / 1.969 in; overall 76 mm / 2.992 in | 17 mm / 0.669 in hex | ||
| BT-057 | 60° conical-seat bolt; M14 × 1.50Select seat profile and usable thread length to match the wheel and hub. | Thread 50 mm / 1.969 in; overall 76 mm / 2.992 in | 17 mm / 0.669 in hex |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.
Frequently Asked Questions
How do I choose the right wheel lug bolts configuration?
Choose the correct seat and thread pitch, then verify thread engagement for the wheel and hub. Similar total lengths can conceal different thread lengths.
What is listed for BT-088?
Conical tuner bolt; M12 × 1.25. Thread 23 mm / 0.906 in; overall 52 mm / 2.047 in. 6-point drive; K-004 / K-005 listed. Select seat profile and usable thread length to match the wheel and hub.
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
