Air Tools
Air Impact Wrenches & Kits
Air impact wrenches are offered as a standalone model and socket-kit configurations. Drive size, contents and packaging vary across the series.
Key Specifications
- Series
- Air Impact Wrenches & Kits
- Listed configurations
- 3
- Selection
- Type / application · Specification · Dimensions / logistics
- Catalogue reference
- Tire Service Products, pp. 97
Product Details
Select drive and torque requirements, then check compressor demand and socket sizes. Kit contents should be confirmed against the selected model. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences

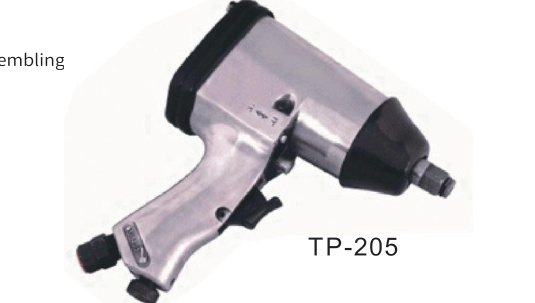

- TP-205: 1/2 in / 12.7 mm square-drive air impact wrench.
- TP-004K: 1/2 in / 12.7 mm air impact wrench kit.
- TP-015K: 1 in / 25.4 mm extended-anvil air impact wrench kit.
Applications
Typical application
Wheel-fastener work and compatible workshop assembly tasks.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Type / application | Specification | Dimensions / logistics | Quantity (pcs) | |
|---|---|---|---|---|---|
| TP-205 | 1/2 in / 12.7 mm square-drive air impact wrench10 pieces / carton. | Bolt capacity 5/8 in / 16 mm; 7,000 rpm; 250 ft·lb / 340 N·m; 8 cfm / 0.23 m³/min; suggested compressor 2 HP | Inlet 1/4 in PT; hose ID 3/8 in / 9.525 mm; 2.05 kg; carton 340 × 200 × 220 mm / 13.39 × 7.87 × 8.66 in | ||
| TP-004K | 1/2 in / 12.7 mm air impact wrench kit4 sets / carton; gross 18 kg. | 10 sockets: 9 mm / 0.354 in, 10 mm / 0.394 in, 11 mm / 0.433 in, 13 mm / 0.512 in, 14 mm / 0.551 in, 17 mm / 0.669 in, 19 mm / 0.748 in, 22 mm / 0.866 in, 24 mm / 0.945 in, 27 mm / 1.063 in | 100 mm / 3.937 in extension, oil pot, nipple, mini oiler, 4 mm / 0.157 in hex key and case; carton 415 × 290 × 275 mm / 16.34 × 11.42 × 10.83 in | ||
| TP-015K | 1 in / 25.4 mm extended-anvil air impact wrench kit2 kits / carton. | Sockets: 38 mm / 1.496 in and 41 mm / 1.614 in | Hose nipple, hex wrench and case; carton 560 × 290 × 330 mm / 22.05 × 11.42 × 12.99 in |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.
Frequently Asked Questions
How do I choose the right air impact wrenches & kits configuration?
Select drive and torque requirements, then check compressor demand and socket sizes. Kit contents should be confirmed against the selected model.
What is listed for TP-205?
1/2 in / 12.7 mm square-drive air impact wrench. Bolt capacity 5/8 in / 16 mm; 7,000 rpm; 250 ft·lb / 340 N·m; 8 cfm / 0.23 m³/min; suggested compressor 2 HP. Inlet 1/4 in PT; hose ID 3/8 in / 9.525 mm; 2.05 kg; carton 340 × 200 × 220 mm / 13.39 × 7.87 × 8.66 in. 10 pieces / carton.
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
