Tire Repair Tools
Steel Tire Levers for Workshop and Wholesale Supply
Compare six AUTOWIN steel tire levers for manual tire-service tool assortments. The 93-series spans catalogue lengths from 12 to 30 inches, with metric conversions shown for purchasing reference. Choose the length and working-end profile for the intended tire and rim application, then specify model quantities for a distributor or workshop quotation.
Key Specifications
- Series
- Steel Tire Levers
- Listed configurations
- 6
- Selection
- Construction / finish · Length (in) · Length (mm)
- Catalogue reference
- Tire Service Products, pp. 37
Product Details

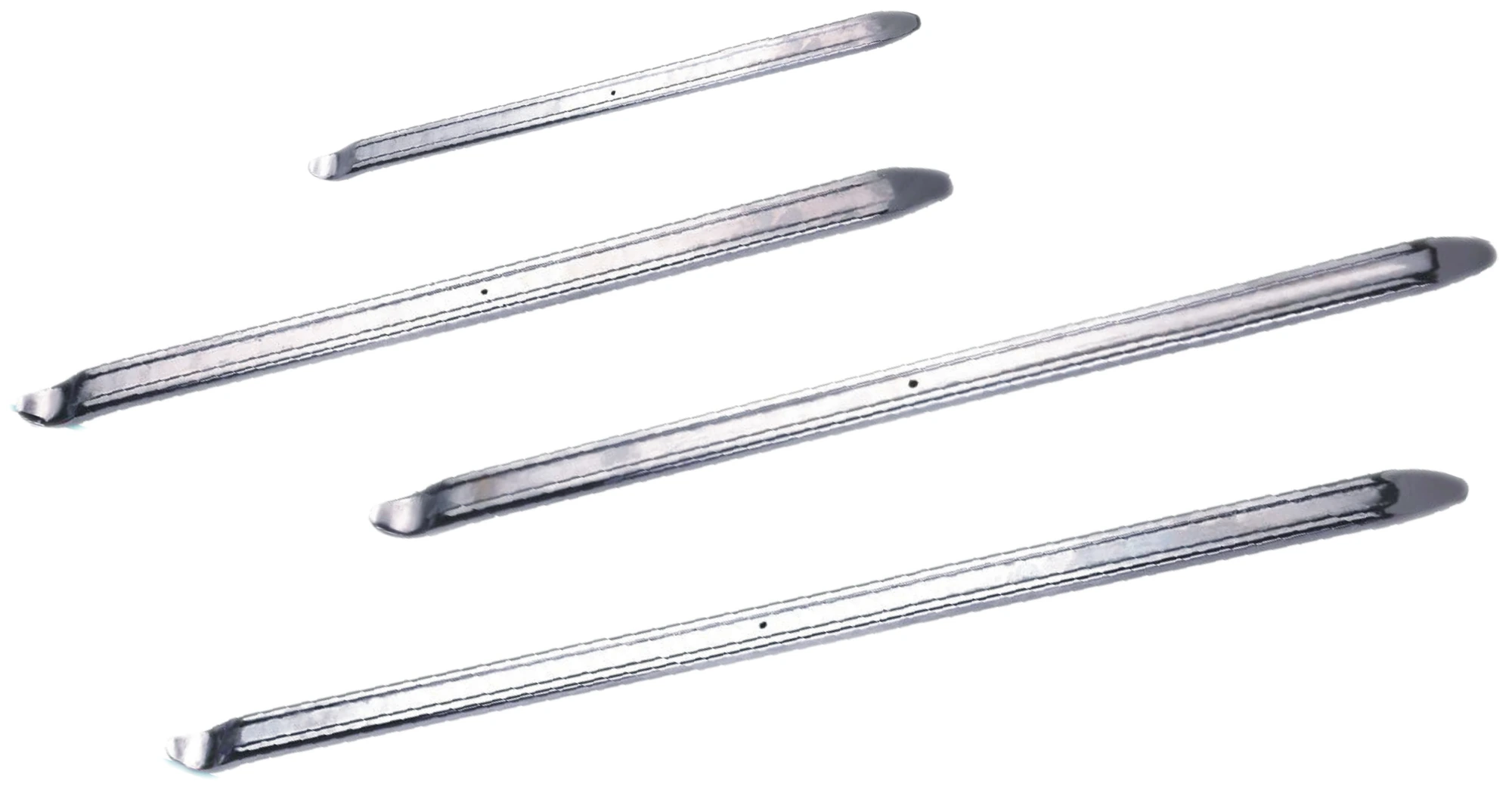

This tire changer accessories page presents steel tire levers for manual tire-service tool supply. The listed products are hand tools, so selection centres on lever length, working-end profile and the tire-and-rim application. The series table gives six 93-series references with the catalogue construction described as steel and a chrome-coated / sand finish.
The length sequence is 93-060 at 12 inches, 93-061 at 16 inches, 93-062 at 20 inches, 93-063 at 22 inches, 93-064 at 24 inches and 93-065 at 30 inches. Metric figures are conversions of those catalogue inch values, ranging from 304.8 to 762 mm. Use the original reference and listed length together when specifying a replacement or stocking a range.
Length alone does not establish a lever's suitability for every rim. Review the end shape, available clearance and the procedure used in the intended workshop. Where an existing tool must be matched, provide its profile and dimensional reference instead of relying on a similar silhouette or nominal length. Any rim-protection requirements should be considered with the actual wheel finish and service method.
For wholesale purchasing, list quantities by model rather than requesting an unspecified mixed set. Include the desired packing unit, destination and any labelling requirements. A distributor assortment can then be quoted with each length clearly identified, making future replenishment easier to match. Ask for confirmation of any additional dimensional, construction or inspection requirements before approving the final order specification.
Model Differences
- 93-060: Steel; chrome-coated / sand finish.
- 93-063: Steel; chrome-coated / sand finish.
- 93-065: Steel; chrome-coated / sand finish.
Applications
Typical application
Manual tire-service tool assortments.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Construction / finish | Length (in) | Length (mm) | Quantity (pcs) | |
|---|---|---|---|---|---|
| 93-060 | Steel; chrome-coated / sand finishMetric length converted from catalogue inches. | 12 | 304.8 | ||
| 93-061 | Steel; chrome-coated / sand finishMetric length converted from catalogue inches. | 16 | 406.4 | ||
| 93-062 | Steel; chrome-coated / sand finishMetric length converted from catalogue inches. | 20 | 508.0 | ||
| 93-063 | Steel; chrome-coated / sand finishMetric length converted from catalogue inches. | 22 | 558.8 | ||
| 93-064 | Steel; chrome-coated / sand finishMetric length converted from catalogue inches. | 24 | 609.6 | ||
| 93-065 | Steel; chrome-coated / sand finishMetric length converted from catalogue inches. | 30 | 762.0 |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.
Frequently Asked Questions
Which steel tire lever lengths are listed?
The six entries are 12, 16, 20, 22, 24 and 30 inches, corresponding to models 93-060 through 93-065. The metric figures in the table are conversions from the catalogue inch lengths.
Does this page supply replacement components for a specific tire-changing machine?
The current series table lists manual steel tire levers. It does not establish machine-model compatibility or a range of replacement machine components. Describe the hand-tool application and profile required when requesting a quotation.
What besides length matters when choosing a tire lever?
Compare the working-end shape, clearance around the tire and rim, and the service procedure being used. A longer lever does not automatically establish suitability for a different wheel or surface finish.
How should a buyer organize a broader tire-service hand-tool order?
List each lever reference and quantity separately. Buyers also sourcing preparation tools can review <a href="https://autowinindustrial.com/products/tire-service-products/tire-repair-tools/skiving-knives/">tire skiving knives</a> and <a href="https://autowinindustrial.com/products/tire-service-products/tire-repair-tools/tire-patch-stitchers/">patch stitchers and rollers</a>, with each tool quoted for its own workshop role.
