Patches, Inserts & Cements
Mushroom Tire Patch Plugs

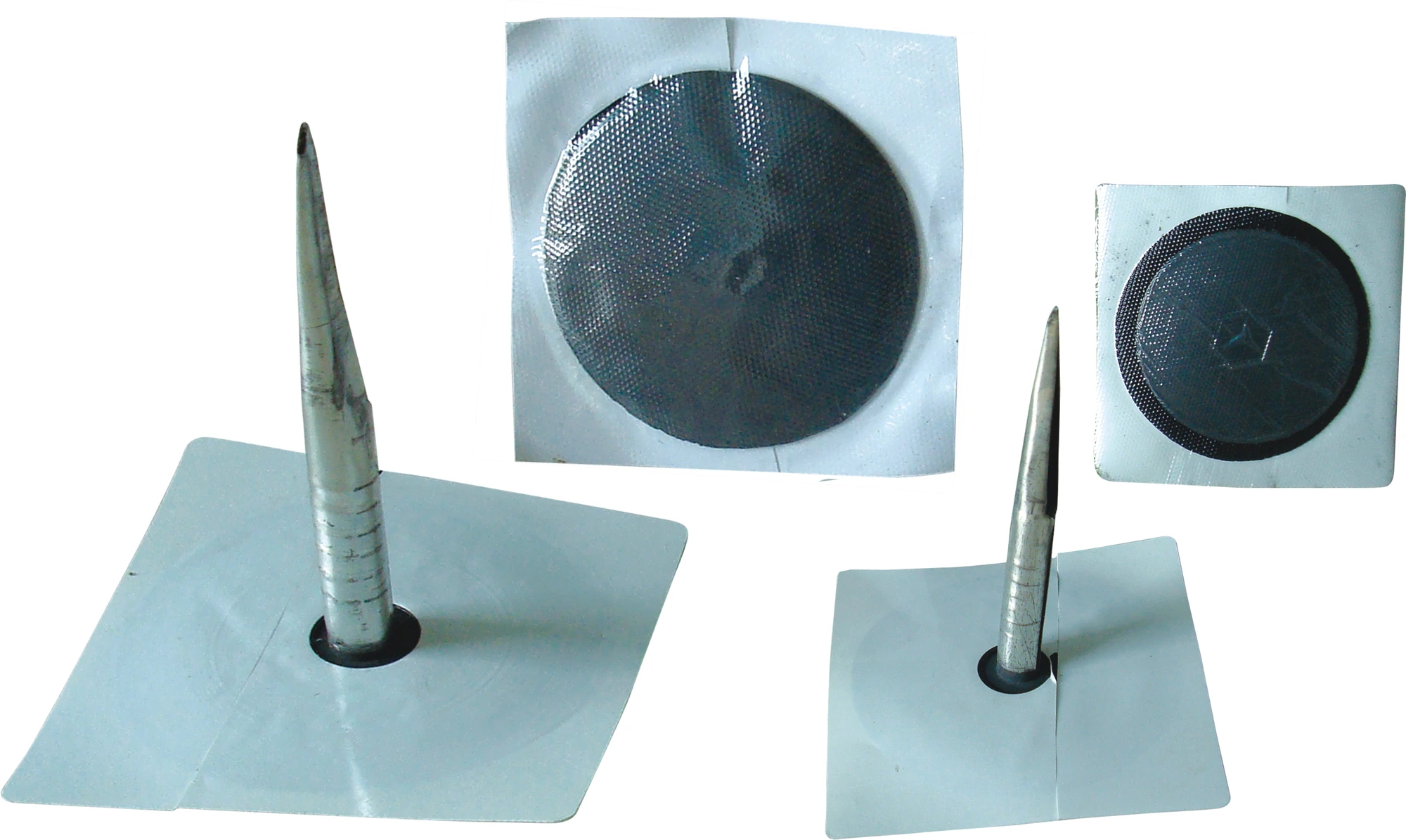

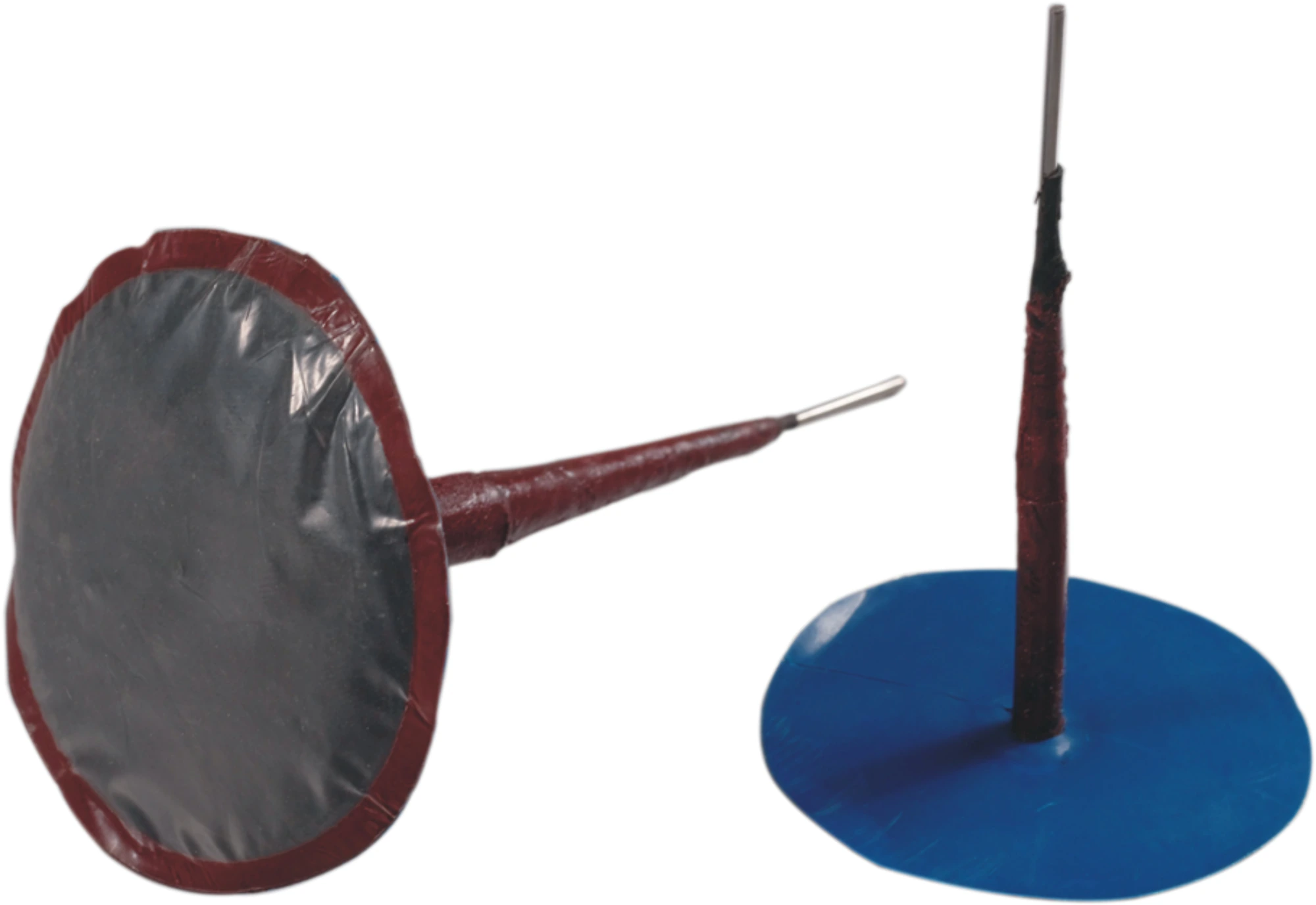

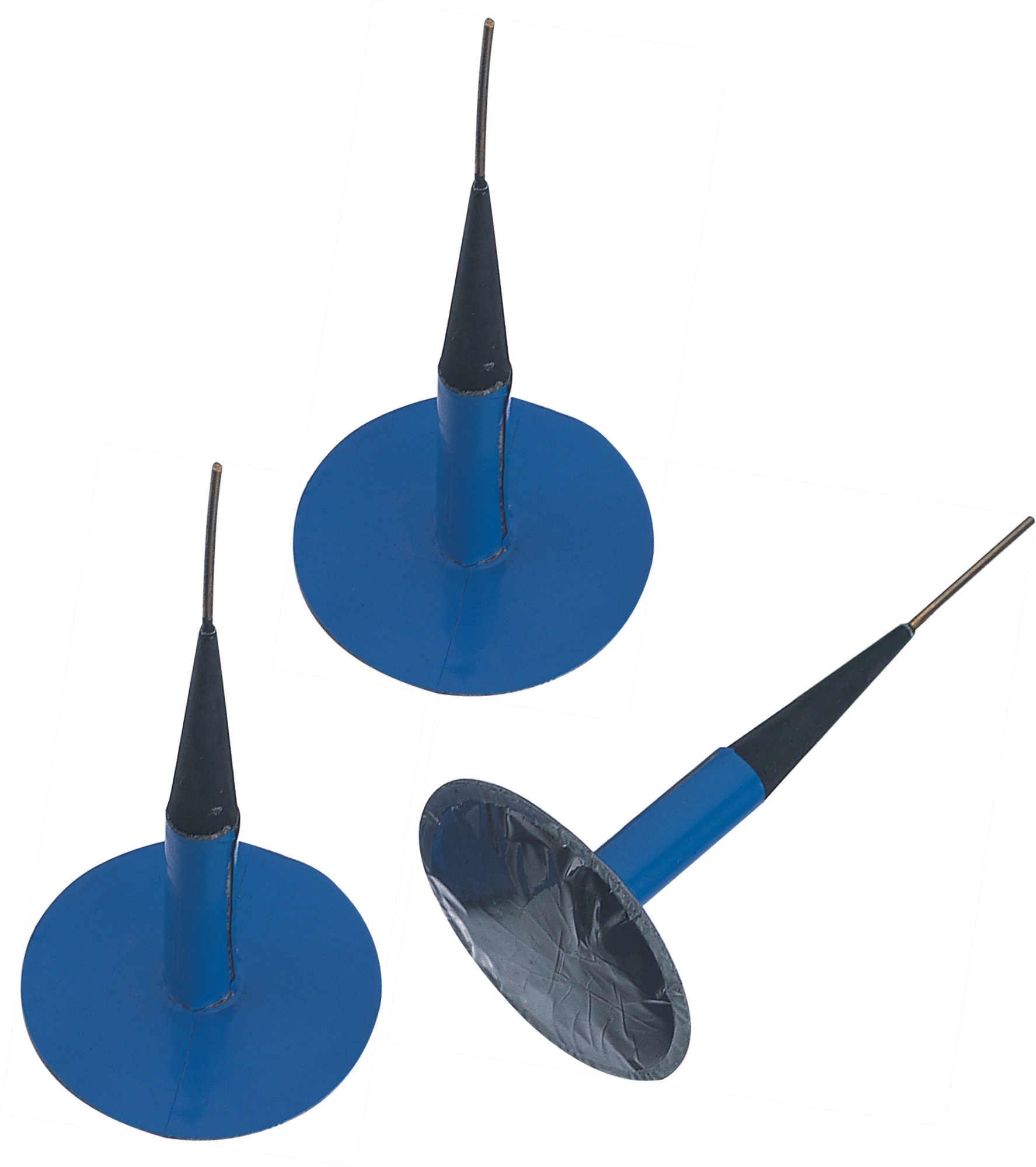

Mushroom tire patch plugs combine a patch body with a stem. Dipped, wrapped and metal-wrapped versions are listed with different dimensions and pack quantities.
Key Specifications
- Series
- Mushroom Tire Patch Plugs
- Listed configurations
- 16
- Selection
- Stem construction · Patch / stem diameter (mm) · Patch / stem diameter (in, approx.)
- Catalogue reference
- Tire Service Products, pp. 23–24
Product Details
Compare stem diameter, patch size and stem presentation. Selection also depends on injury assessment and the repair system being used. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences
- S-605/24: Dipped.
- S-601: Wrapped.
- S-606: Metal wrapped.
Applications
Typical application
Professional internal puncture-repair workflows following the applicable repair procedure.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Stem construction | Patch / stem diameter (mm) | Patch / stem diameter (in, approx.) | Quantity (pcs) | |
|---|---|---|---|---|---|
| S-605/24 | Dipped24 per box | 35 / 3 | 1.378 / 0.118 | ||
| S-605/48 | Dipped48 per box | 35 / 3 | 1.378 / 0.118 | ||
| S-6045/24 | Dipped24 per box | 40 / 4.5 | 1.575 / 0.177 | ||
| S-6045/48 | Dipped48 per box | 40 / 4.5 | 1.575 / 0.177 | ||
| S-602A | Dipped24 per box | 45 / 6 | 1.772 / 0.236 | ||
| S-602C | Dipped24 per box | 50 / 6 | 1.969 / 0.236 | ||
| S-603C | Dipped24 per box | 50 / 9 | 1.969 / 0.354 | ||
| S-604 | Dipped24 per box | 60 / 9 | 2.362 / 0.354 | ||
| S-601 | Wrapped24 per box | 35 / 4 | 1.378 / 0.157 | ||
| S-602 | Wrapped24 per box | 45 / 6 | 1.772 / 0.236 | ||
| S-602C/14 | Wrapped14 per box | 50 / 7 | 1.969 / 0.276 | ||
| S-603 | Wrapped24 per box | 60 / 9 | 2.362 / 0.354 | ||
| S-603C/14 | Wrapped14 per box | 50 / 10 | 1.969 / 0.394 | ||
| S-605T | Metal wrapped24 per box | 35 / 3 | 1.378 / 0.118 | ||
| S-6045T | Metal wrapped24 per box | 40 / 4.5 | 1.575 / 0.177 | ||
| S-606 | Metal wrapped24 per box | 50 / 6 | 1.969 / 0.236 |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.
Additional Existing Products
These existing items are listed separately from the current catalogue model table.
Frequently Asked Questions
How do I choose the right mushroom tire patch plugs configuration?
Compare stem diameter, patch size and stem presentation. Selection also depends on injury assessment and the repair system being used.
What is listed for S-605/24?
Dipped. 35 / 3. 1.378 / 0.118. 24 per box
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
Request a Quotation
Send the required models, quantities and packaging details.
Selected models
No models selected yet. You can also describe what you need in the form.
Your model selection will be included in Project Details.
