Tire Inflators

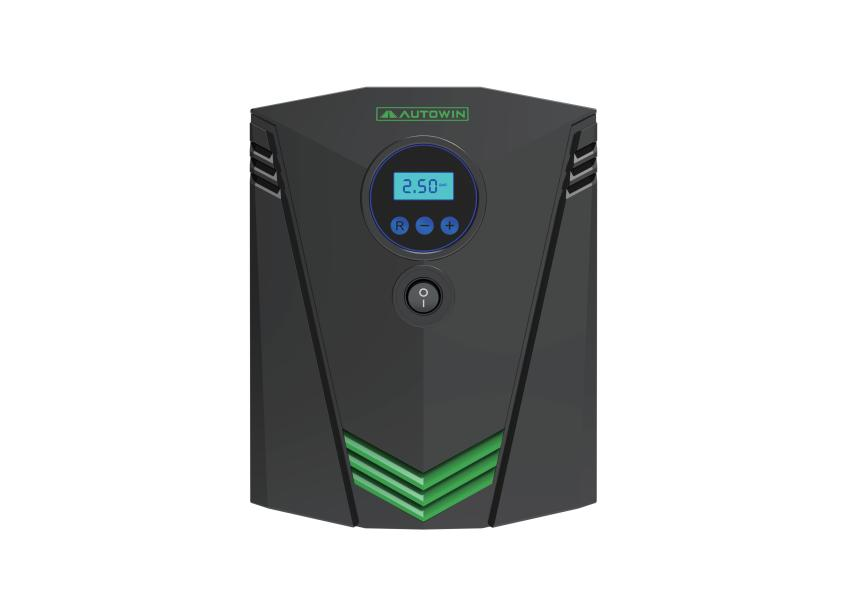

12V Corded Tire Inflators
These 12V tire inflators connect to a vehicle power outlet for routine tire inflation. The range includes digital preset models and an analog-gauge option.
Key Specifications
- Series
- 12V Corded Tire Inflators
- Listed configurations
- 7
- Selection
- Power / display · Performance · Body dimensions (mm / in)
- Catalogue reference
- Tire Service Products, pp. 1–3
Product Details
Choose the display, airflow and body format first. Compare cord length and supplied nozzles for your intended vehicle kit. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences
- AW-3634M: 12V DC; 100W; digital.
- AW-DA03M: 12V DC; 70W; analog.
- AW-3642: 12V DC; 100W; digital.
Applications
Typical application
Vehicle accessory ranges and roadside tire top-ups.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Power / display | Performance | Body dimensions (mm / in) | Quantity (pcs) | |
|---|---|---|---|---|---|
| AW-3634M | 12V DC; 100W; digital3 m (118.11 in) power cord; automatic stop; LED; 3 extra nozzles and fuse; 16 units/carton; unit weight 0.69 kg. | 150 PSI / 10.3 bar; 20 L/min; 19 mm cylinder | 145 × 50 × 185 mm / 5.71 × 1.97 × 7.28 in | ||
| AW-DA01 | 12V DC; 100W; digital3 m (118.11 in) power cord; automatic stop; 5 modes; LED; cooling fan; 4 extra nozzles and fuse; 20 units/carton; unit weight 0.62 kg. | 150 PSI / 10.3 bar; 24 L/min; 21 mm cylinder | 129 × 66 × 162 mm / 5.08 × 2.60 × 6.38 in | ||
| AW-DA03 | 12V DC; 70W; digital3 m (118.11 in) power cord; automatic stop; LED; cooling fan; 2 extra nozzles and fuse; 32 units/carton; unit weight 0.37 kg. | 150 PSI / 10.3 bar; 16 L/min; 17 mm cylinder | 100 × 45 × 135 mm / 3.94 × 1.77 × 5.31 in | ||
| AW-DA03M | 12V DC; 70W; analog3 m (118.11 in) power cord; analog gauge; LED; cooling fan; 2 extra nozzles and fuse; 32 units/carton; unit weight 0.40 kg. | 100 PSI / 7 bar; 16 L/min; 17 mm cylinder | 100 × 45 × 135 mm / 3.94 × 1.77 × 5.31 in | ||
| AW-3674M | 12V DC; 100W; digital3 m (118.11 in) power cord; automatic stop; LED; cooling fan; 3 extra nozzles and fuse; 20 units/carton; unit weight 0.64 kg. | 150 PSI / 10.3 bar; 24 L/min; 21 mm cylinder | 125 × 65 × 160 mm / 4.92 × 2.56 × 6.30 in | ||
| AW-3678 | 12V DC; 100W; digital3 m (118.11 in) power cord; automatic stop; carry handle; LED with normal/SOS/flash modes; 3 extra nozzles and fuse; 16 units/carton; unit weight 0.77 kg. | 150 PSI / 10.3 bar; 26 L/min; 22 mm cylinder | 202 × 79 × 170 mm / 7.95 × 3.11 × 6.69 in | ||
| AW-3642 | 12V DC; 100W; digital3 m (118.11 in) power cord; automatic stop; aluminum alloy housing; carry handle; LED; cooling fan; 3 extra nozzles and fuse; 16 units/carton; unit weight 0.94 kg. | 150 PSI / 10.3 bar; 26 L/min; 22 mm cylinder | 180 × 88 × 160 mm / 7.09 × 3.46 × 6.30 in |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.
Frequently Asked Questions
How do I choose the right 12v corded tire inflators configuration?
Choose the display, airflow and body format first. Compare cord length and supplied nozzles for your intended vehicle kit.
What is listed for AW-3634M?
12V DC; 100W; digital. 150 PSI / 10.3 bar; 20 L/min; 19 mm cylinder. 145 × 50 × 185 mm / 5.71 × 1.97 × 7.28 in. 3 m (118.11 in) power cord; automatic stop; LED; 3 extra nozzles and fuse; 16 units/carton; unit weight 0.69 kg.
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
