Contour Cups for Tire Buffing

Contour cups for tire-repair buffing, available in 3 in and 4 in catalogue diameters. Compare six models by size, SSG grit and arbor hole, with inch and metric dimensions together. Build a mixed-model inquiry for workshop replenishment or wholesale supply.

Key Specifications

Model range: 93-160 / 160A / 161 / 161A / 162 / 162A
Diameter options: 3 in (76 mm) / 4 in (102 mm)
SSG grit options: 16 / 36 / 60 grit
Arbor holes: 3/8 in (≈9.5 mm) / 1/2 in (12.7 mm)

* Catalogue entries; confirm final specifications.

Select Models Download Catalogue

Ask about this product

Product Details

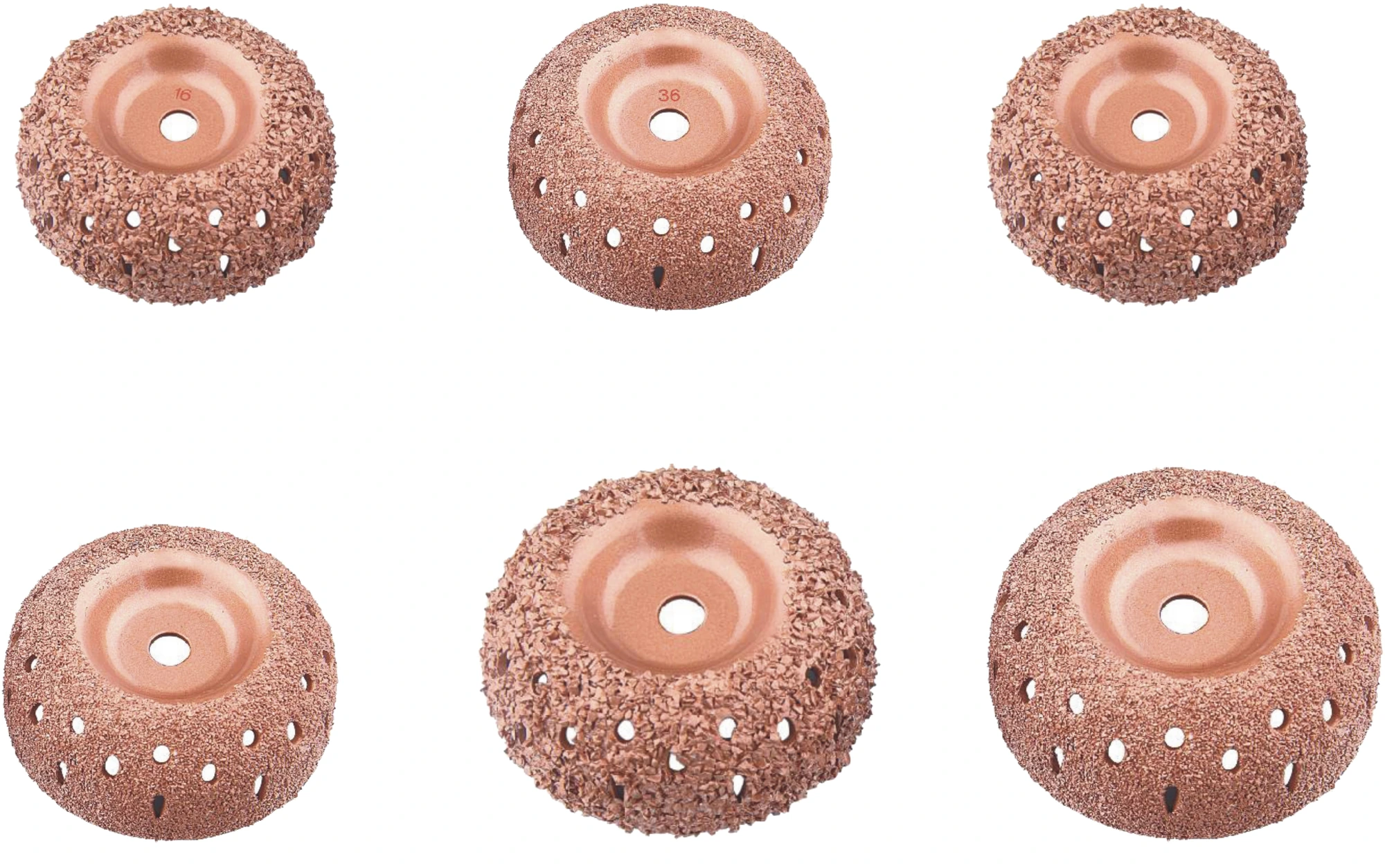

The 93-160 to 93-162A range provides three size groups with different grit options. The 3 × 1 in group offers 16 and 36 grit; the taller 3 × 1-1/2 in group offers 36 and 60 grit. The 4 × 1-1/2 in group also offers 36 and 60 grit.

Mounting changes with the diameter group. The 3 in contour cups list a 3/8 in arbor hole, while the 4 in cups list a 1/2 in hole. Check the holder and available working clearance alongside the cup dimensions. Choose the grit grade required by the tire-repair procedure rather than selecting by cup size alone.

Model Differences

93-160 / 93-160A: 3 × 1 in (76 × 25 mm), 16 / 36 grit, 3/8 in arbor hole.
93-161 / 93-161A: 3 × 1-1/2 in (76 × 38 mm), 36 / 60 grit, 3/8 in arbor hole.
93-162 / 93-162A: 4 × 1-1/2 in (102 × 38 mm), 36 / 60 grit, 1/2 in arbor hole.

Applications

Cup-profile tire buffing

Select the cup-shaped working profile where required for the repair-area preparation. Match the cup diameter, listed height and grit to the process and available clearance.

Distributor and workshop assortments

Build an assortment across the three size groups. Separate the 3/8 in and 1/2 in arbor versions in the stock list, and specify the grit for every SKU.

Confirm holder fit, permitted operating speed and the tire-repair procedure before use.

Models & Specifications

Dimensions shown in inches and millimeters. Select each model and enter your quantity.

6 models

Swipe the table to compare all dimensions.

Model specifications and quotation quantities
Model / SKU	Type	Size (in)	Size (mm)
93-160	16 grit; 3/8 in arbor	3 × 1	76 × 25
93-160A	36 grit; 3/8 in arbor	3 × 1	76 × 25
93-161	36 grit; 3/8 in arbor	3 × 1-1/2	76 × 38
93-161A	60 grit; 3/8 in arbor	3 × 1-1/2	76 × 38
93-162	36 grit; 1/2 in arbor	4 × 1-1/2	102 × 38
93-162A	60 grit; 1/2 in arbor	4 × 1-1/2	102 × 38

Catalogue page 39. Cup dimensions retain the catalogue inch and metric values. Arbor holes are 3/8 in (approximately 9.5 mm) for the 3 in cups and 1/2 in (12.7 mm) for the 4 in cups; metric arbor values are conversions.

No models selectedSelect models above to build your inquiry.

Selection checklist: profile and dimensions · tool compatibility · quantity per model

Frequently Asked Questions

Do all contour cups use the same arbor hole?

No. Models 93-160, 93-160A, 93-161 and 93-161A use a 3/8 in hole. Models 93-162 and 93-162A use a 1/2 in hole. Confirm the matching holder before ordering.

Which contour cups are available in 60 grit?

Models 93-161A and 93-162A are 60 grit. Their catalogue dimensions are 3 × 1-1/2 in (76 × 38 mm) and 4 × 1-1/2 in (102 × 38 mm), respectively.

How do contour cups differ from a dome tire buffing wheel?

Compare the cup profile with the dome profile and check the mounting. This contour-cup range lists plain arbor holes, while the 93-167 and 93-168 dome tire buffing wheels list 3/8-24 threads. They should not be selected by diameter alone.

Can I combine different contour cup sizes in a wholesale inquiry?

Yes. Select the required SKUs and quantities in the table. Include the mounting requirement, repair application, packaging and delivery destination so AUTOWIN can confirm the selection and quotation.
