English Mold Design & Development
Tooling concepts, mold structure, gate strategy, cooling and maintainability reviewed around the product program.
MOLD ENGINEERING · INJECTION MOLDING · ASSEMBLY

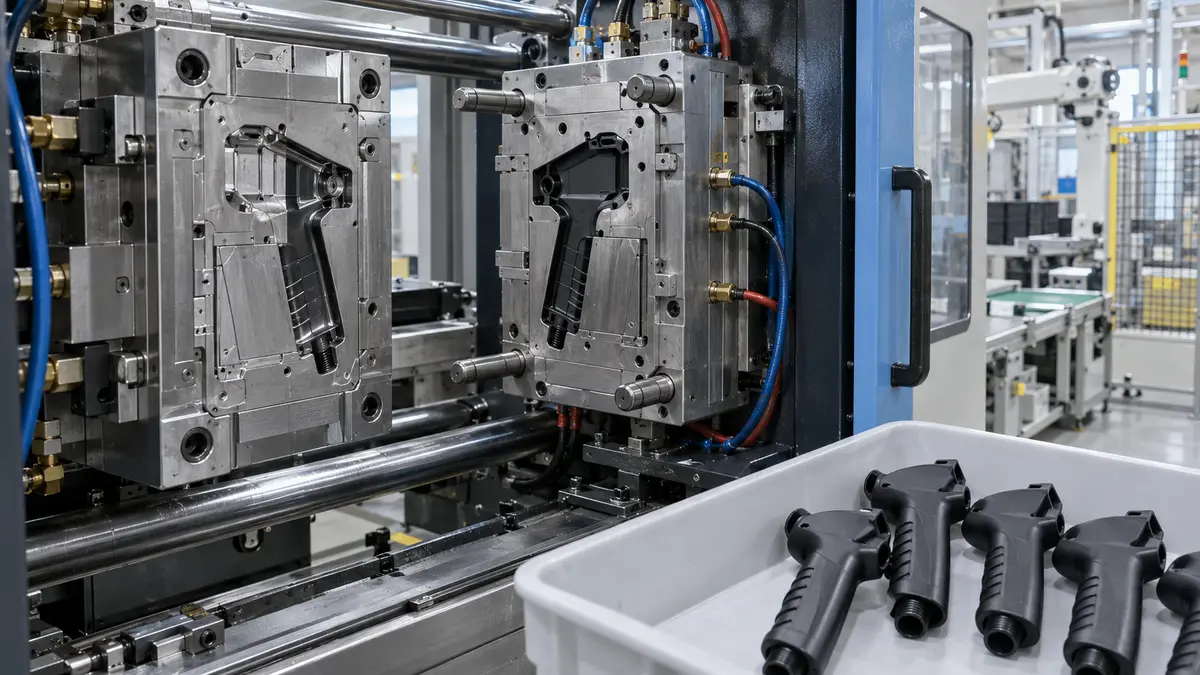

Plastic Injection Molding Built for Stable, Repeatable Production
AUTOWIN supports custom plastic parts from DFM and mold development through sampling, process validation, injection molding and secondary assembly—helping buyers move from concept to dependable volume supply.
Tooling to Production
One coordinated path from mold concept to finished parts
DFM-LedMoldability Review Before Tooling
Tooling SupportMold Development & Sampling
Process-ControlledStable Injection Production
Value-AddedInsert, Assembly & Packaging
MOLDABILITY BEFORE TOOLING
Engineering Decisions That Protect Part Quality and Tool Life
Good molded parts begin with the right decisions on wall thickness, draft, ribs, gates, parting lines, resin behavior and cosmetic surfaces. We review these factors early to reduce avoidable tooling changes and production risk.
- 2D and 3D file review before mold design starts
- Wall thickness, draft, ribs and undercuts evaluated for moldability
- Gate, ejection and parting-line strategy aligned with part requirements
- Shrinkage, warpage, appearance and assembly interfaces considered together
INTEGRATED MOLDING CAPABILITIES
From Mold Development to Finished Plastic Components
Our molding workflow combines tooling, process engineering and value-added operations so custom parts can move through fewer handoffs and clearer quality controls.
Custom Injection Molding
Stable molding of housings, handles, covers, connectors and engineered custom components.
Insert Molding & Overmolding
Metal inserts, threaded features and multi-material concepts evaluated for secure integration.
Secondary Operations & Assembly
Trimming, marking, fastening, subassembly, inspection and packaging coordinated after molding.
PROJECT-TO-PRODUCTION WORKFLOW
A Controlled Path from Part Design to Repeat Orders
Engineering, tooling and molding decisions are connected through defined approval steps to support stable production and easier repeat sourcing.
01
Requirement & DFM Review
Confirm part function, material, appearance, tolerances, annual demand and moldability risks.
02
Mold Design
Develop mold structure, cavity strategy, gate, cooling, ejection and maintenance approach.
03
Tool Build
Manufacture and assemble the mold with planned checkpoints for critical tool features.
04
T0 / T1 Sampling
Evaluate filling, dimensions, appearance, fit and improvement actions through sample trials.
05
Process Validation
Establish a repeatable molding window and confirm approved part and inspection criteria.
06
Production & Delivery
Control molding, secondary operations, final inspection and packaging for repeat supply.
ENGINEERING RESIN OPTIONS
Materials Selected Around Function, Appearance and Processing
Final resin selection should balance strength, temperature, chemical exposure, dimensional stability, surface requirements and target cost.
ABS
Versatile resin for housings, covers and durable components with good appearance.
PP
Lightweight, chemical-resistant material for functional parts and fluid-related applications.
PA / Nylon
Strong engineering material suitable for demanding mechanical components and reinforced grades.
POM / Acetal
Low-friction, dimensionally stable option for moving, mating and precision functional parts.
PC & PC/ABS
Impact-resistant materials for robust housings and appearance-sensitive components.
TPE / TPU & Specified Resins
Flexible and buyer-specified materials reviewed for performance and molding suitability.
PROJECT CAPABILITY MATRIX
Production Planned Around Your Part and Supply Requirements
Share your CAD files, resin preference, sample, annual volume and critical characteristics. Our team can evaluate the tooling route, expected risk points and downstream operations before quotation.
Project Input2D drawings, 3D models, samples and functional requirements
Material ReviewCommodity, engineering, reinforced and buyer-specified thermoplastics
Tooling RouteMold design, tool build, sampling, modification and maintenance support
Molding OptionsStandard molding, insert molding, overmolding and application-specific solutions
AppearanceTexture, color, visible surfaces, gate and parting-line requirements
Value-Added WorkTrimming, marking, assembly, inspection and export packaging
APPLICATION COVERAGE
Molded Components for Industrial and OEM Product Programs
Custom plastic production for parts requiring dependable fit, protection, handling, flow control or product integration.
01Tool Housings & Handles
02Pneumatic Components
03Automotive & Tire Service
04Fluid-Control Products
05Industrial Hardware
06Custom OEM Assemblies
QUALITY BUILT INTO THE MOLDING WINDOW
Part Quality Controlled from Resin to Packed Production
Inspection planning connects material, process parameters, dimensional checks, appearance standards and approved samples to support repeatable output across production batches.
✓Incoming Resin ControlSpecified resin, color and applicable material information reviewed before use.
✓First-Article ApprovalInitial molded parts checked against approved drawings, samples and criteria.
✓Process Parameter ControlKey molding conditions monitored within the established production window.
✓Dimensional InspectionCritical dimensions and assembly interfaces measured at defined stages.
✓Appearance & Color ReviewVisible surfaces, defects, texture and color consistency checked as required.
✓Final & Batch RecordsFinal acceptance, quantity, packaging and production references recorded.
START YOUR INJECTION MOLDING PROJECT
Need a Manufacturing Partner from Mold to Production?
Send your CAD files, material, quantity, appearance standard and target timing. AUTOWIN will review moldability and recommend a practical tooling and molding route.
Request a Molding Review→ Typical inquiries receive a response within 24 hours.
