Tire Changers & Wheel Balancers

Tire Changing Machines

The catalogue includes a side-swing changer, a leverless automatic machine and an electro-hydraulic heavy-wheel model. Their rim ranges and power requirements differ substantially.

Key Specifications

Series: Tire Changing Machines
Listed configurations: 3
Selection: Machine type · Wheel / rim range · Power / operation
Catalogue reference: Tire Service Products, pp. 104–105

Select Models Download Catalogue

Ask about this product

Product Details

Review tire changer machine specifications and compare the listed models. Select by wheel type and working range, then verify electrical and air supply. Marked diameter and width discrepancies require confirmation. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.

Model Differences

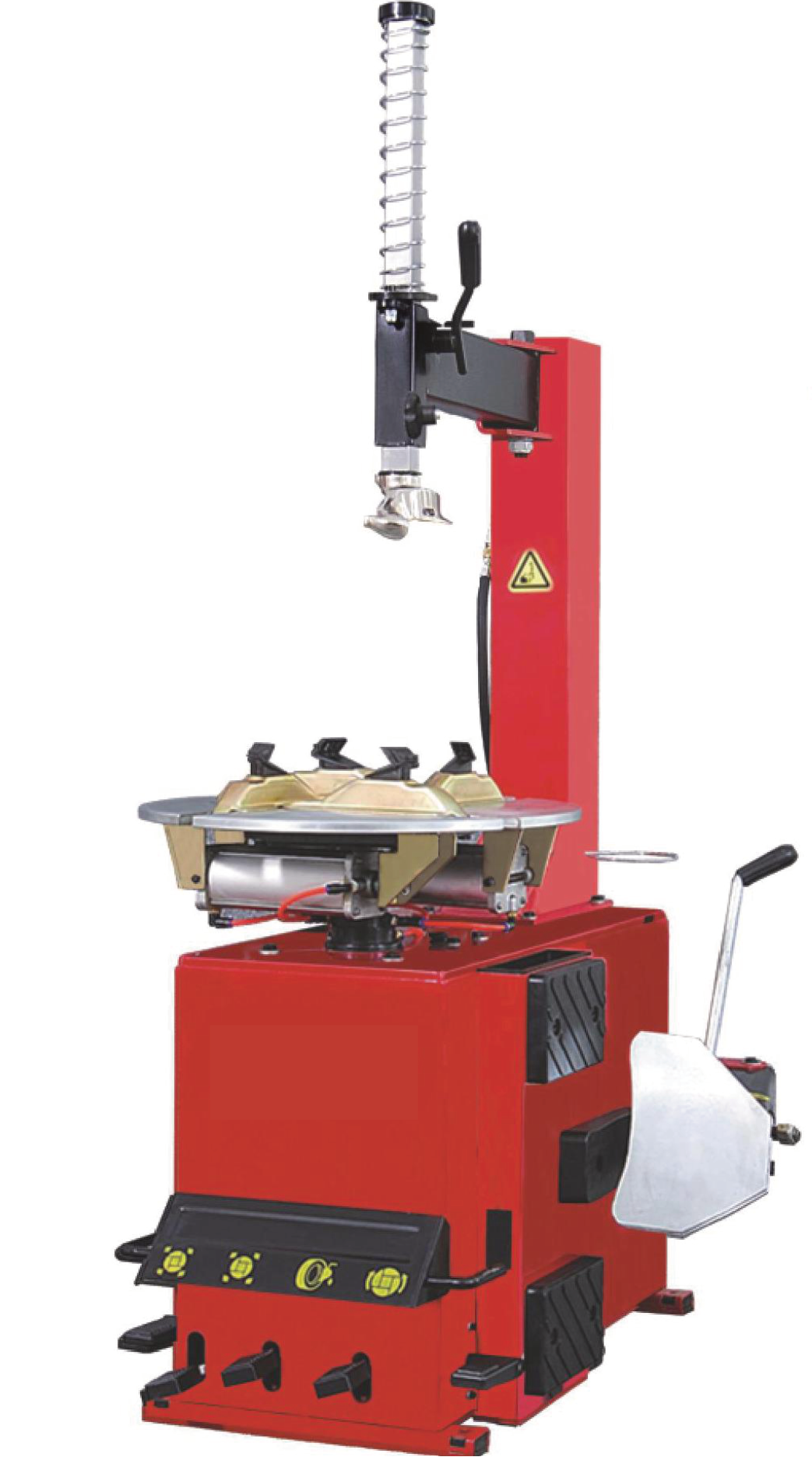

BR-502: Semi-automatic side-swing tire changer; pneumatic bead breaker.
BR668: Leverless automatic tire changer.
BR6210: Electro-hydraulic truck / bus / passenger tire changer.

Applications

Typical application

Passenger, light-commercial or heavy-wheel service bays according to the selected machine.

Distributor and workshop orders

Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.

Models & Specifications

Compare specifications and select the models or size configurations for your quotation.

3 configurations

Swipe the table to compare all dimensions.

Model specifications and quotation quantities
Model / SKU	Machine type	Wheel / rim range	Power / operation
BR-502	Semi-automatic side-swing tire changer; pneumatic bead breakerInch / metric values are printed catalogue entries. Confirm motor voltage/phase, clamp range and max. wheel size.	Outside rim clamp 10–18 in / 254–457.2 mm; inside 12–22 in / 304.8–558.8 mm; max. wheel 38 in / 960 mm; width 3–13 in / 330 mm	8–10 bar; motor 1.1/0.75 kW; supply 110/220/380 V–3ph; pack 970 × 750 × 950 mm / 38.19 × 29.53 × 37.40 in
BR668	Leverless automatic tire changerCatalogue inch / metric maxima disagree; confirm diameter and width. Laser positioning, wheel lift and hydraulic pump station listed.	Rim 10–32 in / 254–812.8 mm; max. wheel 50 in / 1250 mm; width 15 in / 400 mm	380 V; 0.75/1.1 kW; 8–10 bar; listed noise <75 dB
BR6210	Electro-hydraulic truck / bus / passenger tire changerCatalogue lists wheel width 1,200 mm / 47.244 in and also 15 in / 400 mm. Width requires confirmation.	Rim clamp 14–56 in / 355.6–1422.4 mm with extensions; max. wheel diameter 2500 mm / 98.425 in; max. wheel weight 2,000 kg	380 V; 0.75/1.1 kW; clockwise / counterclockwise chuck; 2 speeds

Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.

No models selectedSelect models above to build your inquiry.

Include the complete configuration and quantity for each selected model.

Frequently Asked Questions

How do I choose the right tire changing machines configuration?

Select by wheel type and working range, then verify electrical and air supply. Marked diameter and width discrepancies require confirmation.

What is listed for BR-502?

Semi-automatic side-swing tire changer; pneumatic bead breaker. Outside rim clamp 10–18 in / 254–457.2 mm; inside 12–22 in / 304.8–558.8 mm; max. wheel 38 in / 960 mm; width 3–13 in / 330 mm. 8–10 bar; motor 1.1/0.75 kW; supply 110/220/380 V–3ph; pack 970 × 750 × 950 mm / 38.19 × 29.53 × 37.40 in. Inch / metric values are printed catalogue entries. Confirm motor voltage/phase, clamp range and max. wheel size.

What should I include in a wholesale quotation request?

Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
