Jacks & Lifting Equipment

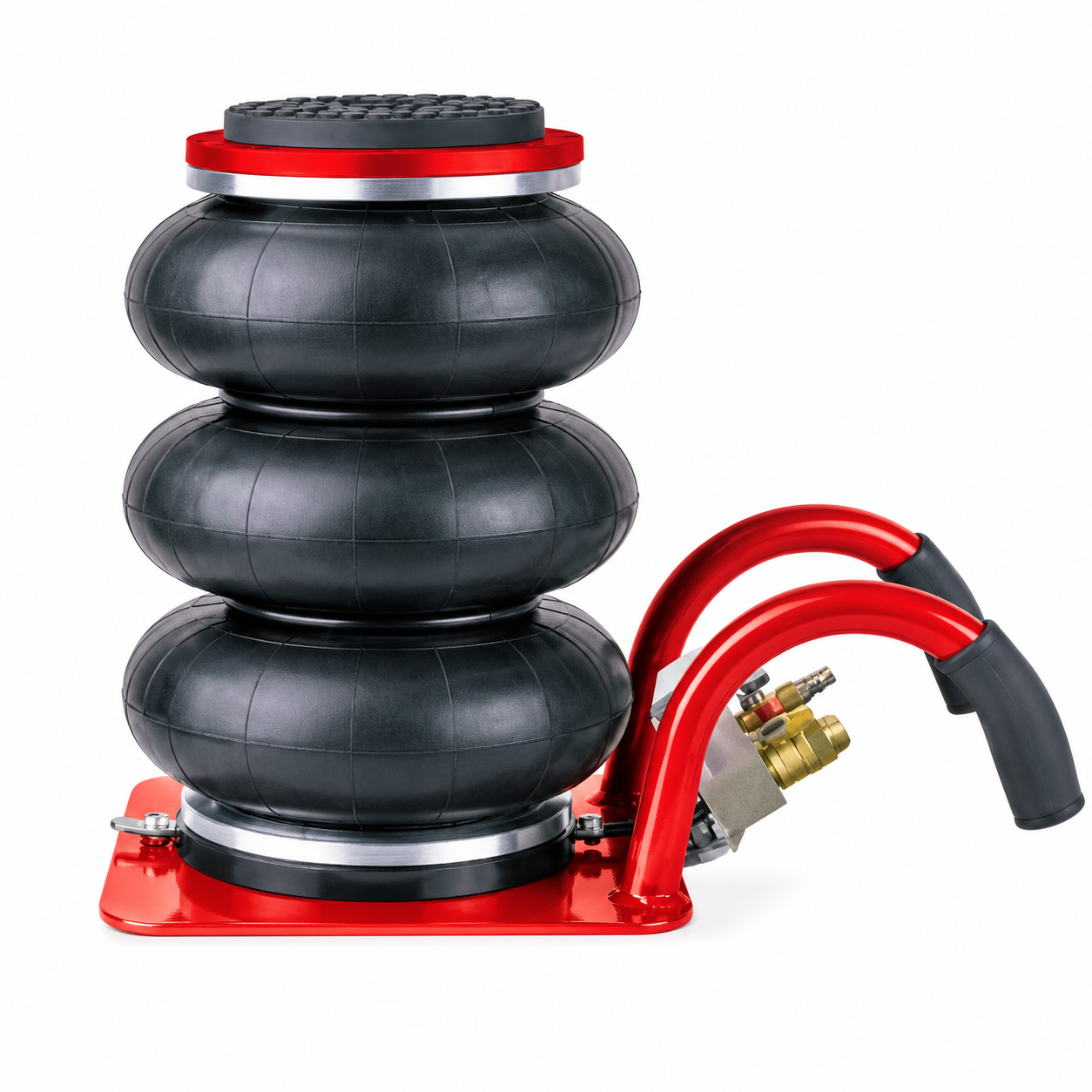

Pneumatic Air Bag Jacks
BRAJ air bag jacks are listed in two- and three-ton catalogue configurations. Height range, handling format and stated lifting time vary by model.
Key Specifications
- Series
- Pneumatic Air Bag Jacks
- Listed configurations
- 9
- Selection
- Type / capacity · Working dimensions · Weight / packaging
- Catalogue reference
- Tire Service Products, pp. 103
Product Details
Confirm capacity, compressed-air requirements and working clearance. Verify the printed operating-temperature range for the selected unit. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences
- BRAJ001: 2 ton air bag jack; listed lifting time 3 s.
- BRAJ005: 3 ton air bag jack; listed lifting time 4 s.
- BRAJ009: 3 ton air bag jack; listed lifting time 5 s.
Applications
Typical application
Compatible workshop lifting operations using pneumatic equipment.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Type / capacity | Working dimensions | Weight / packaging | Quantity (pcs) | |
|---|---|---|---|---|---|
| BRAJ001 | 2 ton air bag jack; listed lifting time 3 sCatalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure. | Min. 100 mm / 3.937 in; max. 295 mm / 11.614 in | Pack 485 × 330 × 195 mm / 19.09 × 12.99 × 7.68 in; NW/GW 14/14.5 kg | ||
| BRAJ002 | 2 ton air bag jack; listed lifting time 3 sCatalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure. | Min. 100 mm / 3.937 in; max. 295 mm / 11.614 in | Pack 485 × 330 × 285 mm / 19.09 × 12.99 × 11.22 in; NW/GW 16/17 kg | ||
| BRAJ003 | 2 ton air bag jack; listed lifting time 4 sCatalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure. | Min. 125 mm / 4.921 in; max. 400 mm / 15.748 in | Pack 485 × 330 × 195 mm / 19.09 × 12.99 × 7.68 in; NW/GW 17/17.5 kg | ||
| BRAJ004 | 2 ton air bag jack; listed lifting time 4 sCatalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure. | Min. 125 mm / 4.921 in; max. 400 mm / 15.748 in | Pack 485 × 330 × 285 mm / 19.09 × 12.99 × 11.22 in; NW/GW 19/20 kg | ||
| BRAJ005 | 3 ton air bag jack; listed lifting time 4 sCatalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure. | Min. 100 mm / 3.937 in; max. 295 mm / 11.614 in | Pack 535 × 380 × 195 mm / 21.06 × 14.96 × 7.68 in; NW/GW 23/25 kg | ||
| BRAJ006 | 3 ton air bag jack; listed lifting time 4 sCatalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure. | Min. 100 mm / 3.937 in; max. 295 mm / 11.614 in | Pack 535 × 380 × 285 mm / 21.06 × 14.96 × 11.22 in; NW/GW 25/27 kg | ||
| BRAJ007 | 3 ton air bag jack; listed lifting time 5 sCatalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure. | Min. 145 mm / 5.709 in; max. 420 mm / 16.535 in | Pack 535 × 380 × 210 mm / 21.06 × 14.96 × 8.27 in; NW/GW 27/29 kg | ||
| BRAJ008 | 3 ton air bag jack; listed lifting time 5 sCatalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure. | Min. 145 mm / 5.709 in; max. 420 mm / 16.535 in | Pack 535 × 380 × 305 mm / 21.06 × 14.96 × 12.01 in; NW/GW 29/31 kg | ||
| BRAJ009 | 3 ton air bag jack; listed lifting time 5 sCatalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure. | Min. 135 mm / 5.315 in; max. 430 mm / 16.929 in | Pack 670 × 300 × 210 mm / 26.38 × 11.81 × 8.27 in; NW/GW 20/21 kg |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.
Frequently Asked Questions
How do I choose the right pneumatic air bag jacks configuration?
Confirm capacity, compressed-air requirements and working clearance. Verify the printed operating-temperature range for the selected unit.
What is listed for BRAJ001?
2 ton air bag jack; listed lifting time 3 s. Min. 100 mm / 3.937 in; max. 295 mm / 11.614 in. Pack 485 × 330 × 195 mm / 19.09 × 12.99 × 7.68 in; NW/GW 14/14.5 kg. Catalogue operating temperature −60°C to 50°C; confirm temperature rating and required air pressure.
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
