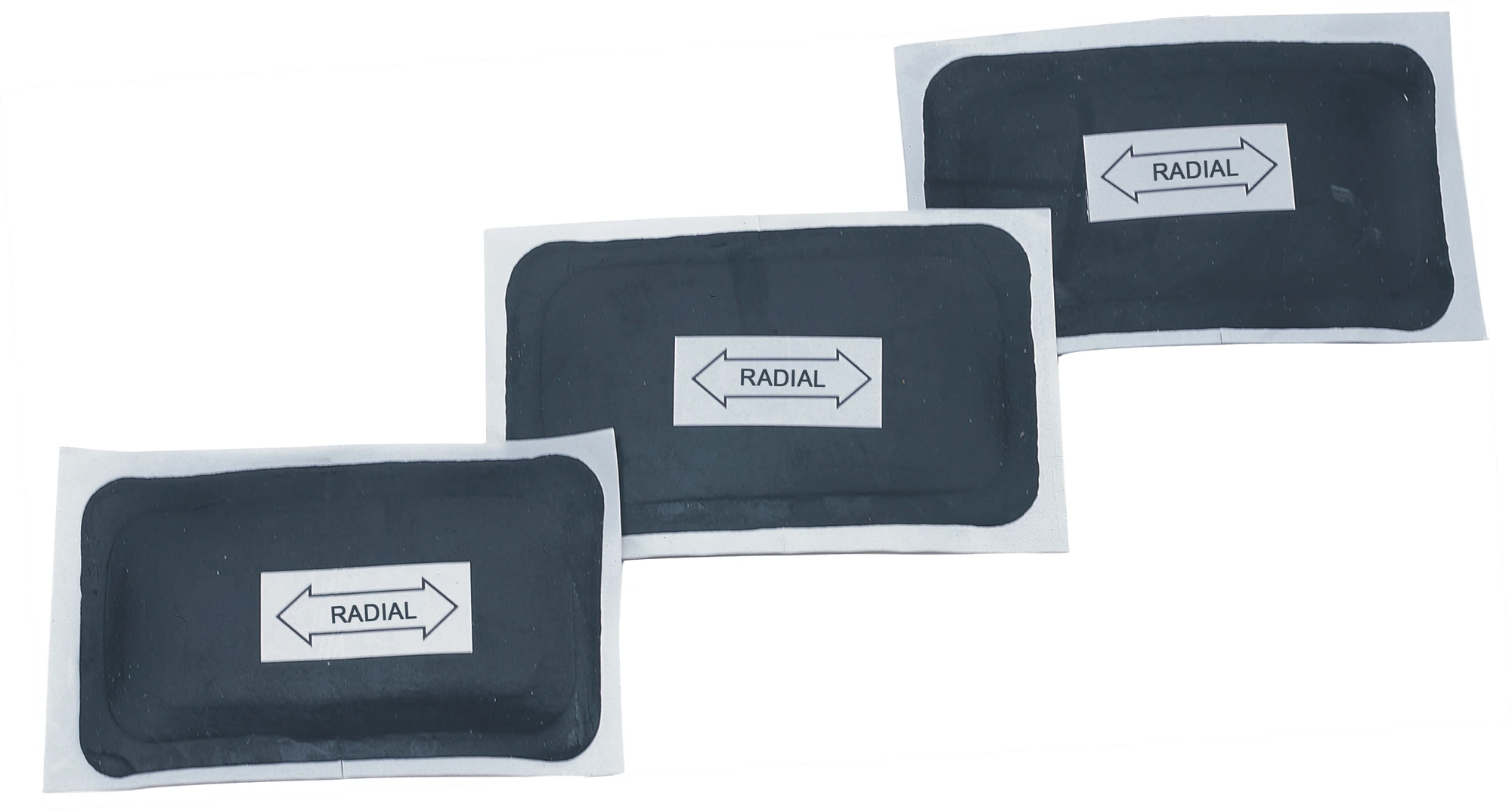

Passenger Radial Repair Units
Passenger radial repair units form a three-model series for compatible radial-tire repair systems.
Key Specifications
- Series
- Passenger Radial Repair Units
- Listed configurations
- 3
- Selection
- Patch format · Size — inch · Size — metric
- Catalogue reference
- Tire Service Products, pp. 17
Product Details
Review radial tire patch specifications and compare the listed models. Select a unit using the assessed injury and the repair-system chart, not tire size alone. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences
- 91-220: Unit-molded small square.
- 91-221: Unit-molded medium square.
- 91-222: Unit-molded large square.
Applications
Typical application
Stocking compatible tire or tube repair consumables for workshop use.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Patch format | Size — inch | Size — metric | Quantity (pcs) | |
|---|---|---|---|---|---|
| 91-220 | Unit-molded small square10 pieces / box; 10 boxes / case. | 1-5/8 × 2-7/8 in | 41 × 73 mm | ||
| 91-221 | Unit-molded medium square10 pieces / box; 10 boxes / case. Catalogue inch and metric dimensions disagree; confirm size before ordering. | 1-1/8 × 3-7/8 in | 55 × 98 mm | ||
| 91-222 | Unit-molded large square10 pieces / box; 10 boxes / case. | 2-5/8 × 5-3/8 in | 67 × 137 mm |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.
Frequently Asked Questions
How do I choose the right passenger radial repair units configuration?
Select a unit using the assessed injury and the repair-system chart, not tire size alone.
What is listed for 91-220?
Unit-molded small square. 1-5/8 × 2-7/8 in. 41 × 73 mm. 10 pieces / box; 10 boxes / case.
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
