Tire Tread Depth Gauges
Tire tread depth gauges in plastic, stainless steel, digital and dial designs. Compare four models with inch and millimeter scales for tire inspection kits and workshop supply.
Key Specifications
- Models
- S2605–S2608
- Measurement
- Tire tread depth
- Scale units
- Inch and millimeter
- Formats
- Manual, digital and dial
* Catalogue entries; confirm final specifications.
Ask about this productProduct Details
This series measures the depth of tire tread grooves. It includes two manual sliding gauges, one digital tire tread depth gauge and one dial gauge. Keeping these tools separate from air-pressure gauges makes it easier to select the correct measurement function. Choose by reading format and construction, and confirm the measuring range and resolution required for your inspection process.
Model Differences

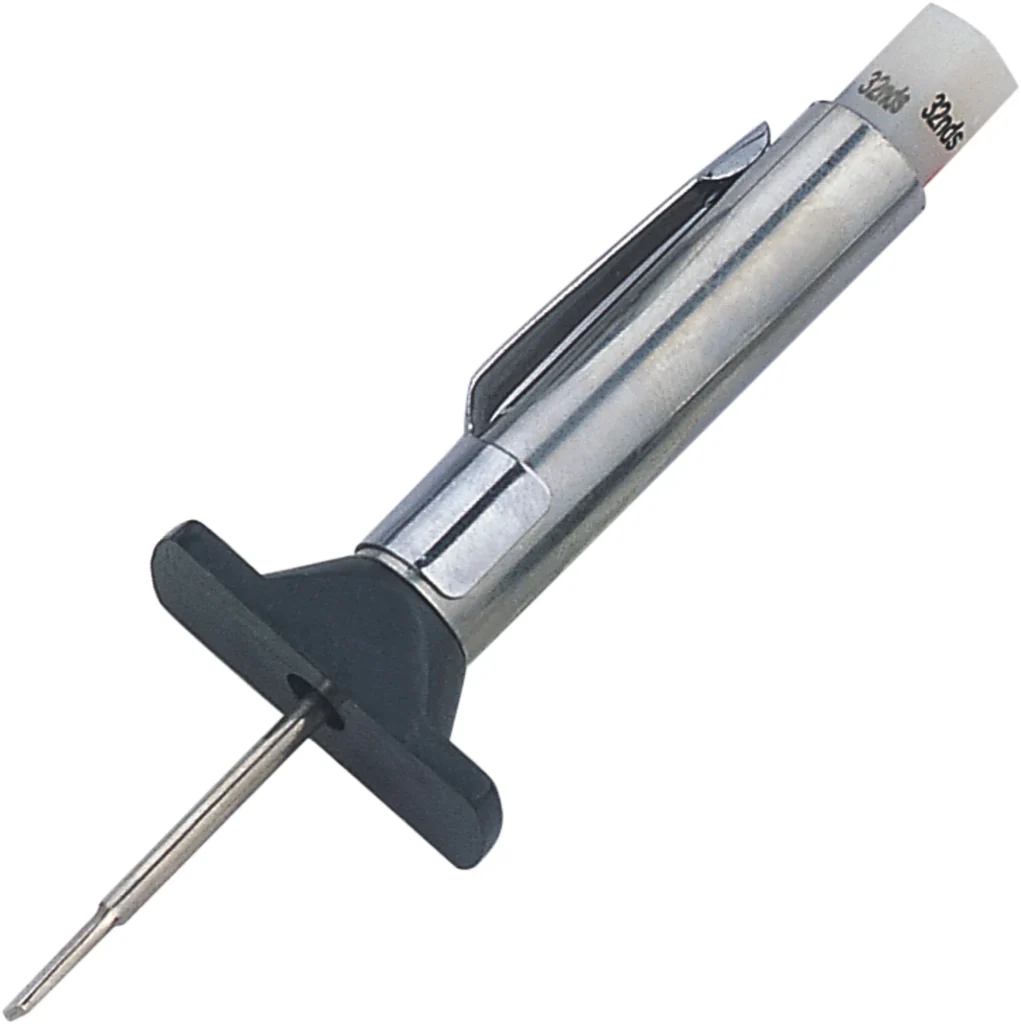

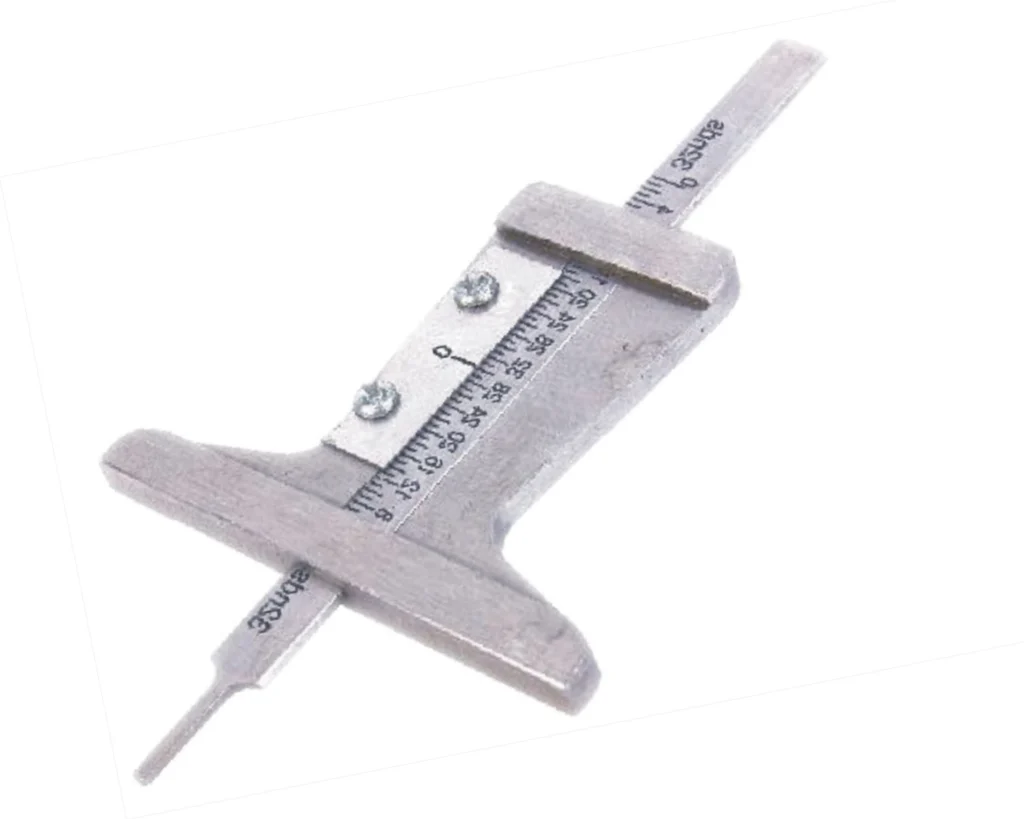

- S2605 is the plastic manual gauge; S2606 uses stainless steel construction.

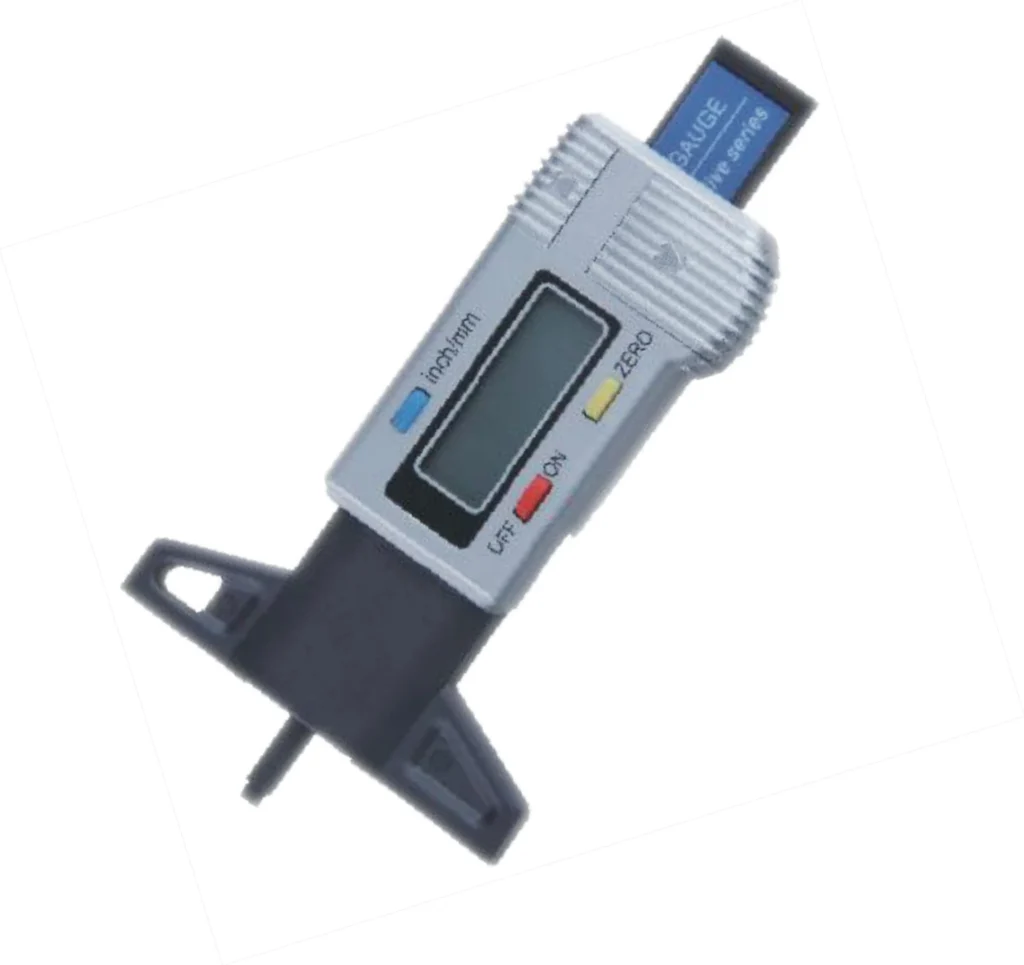

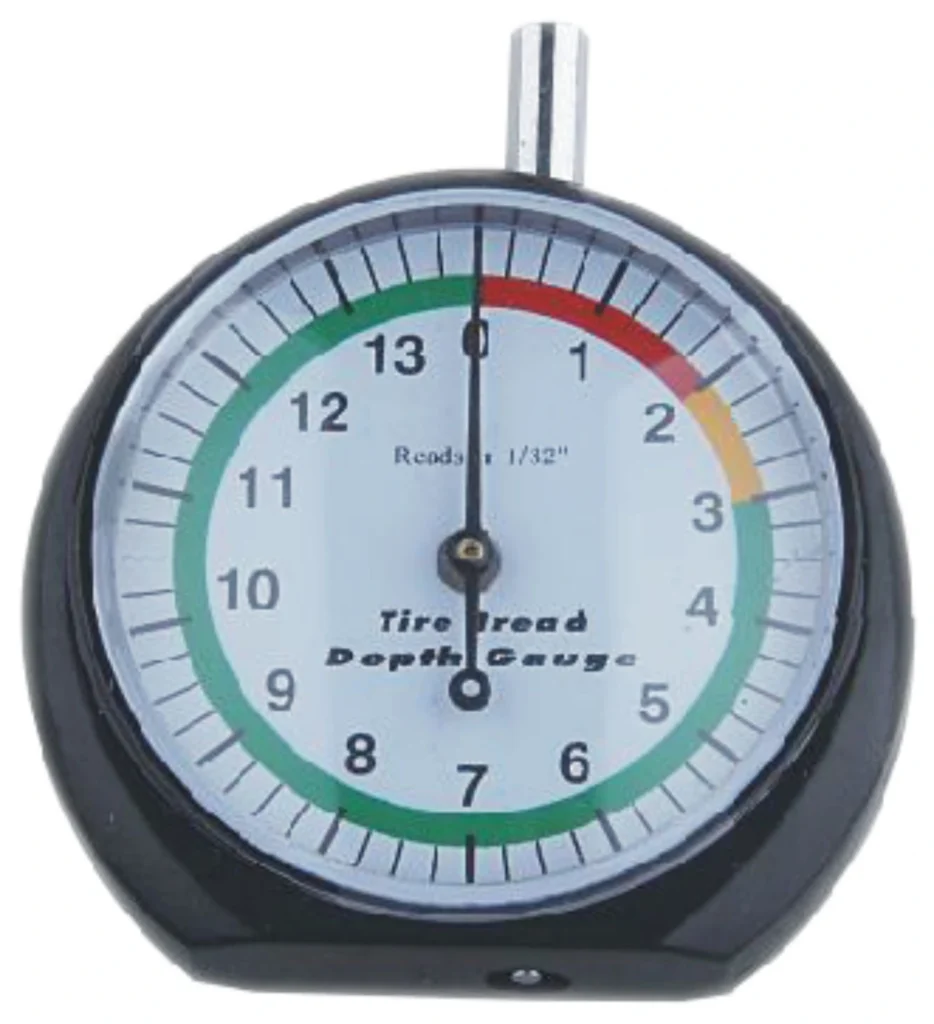

- S2607 provides a digital reading, while S2608 uses an analog dial.
- The catalogue identifies inch and millimeter scales for all four models; model-specific range and resolution should be confirmed.
Applications
Tire condition inspections
Measure tread-groove depth as part of a tire inspection procedure.
Workshop inspection kits
Compare manual, dial and digital readings to match the workshop measurement process.
Tool distribution
Specify a mixed depth-gauge assortment by reading format and quantity.
Models & Specifications
Compare depth-measurement formats. Inch and millimeter scales are listed for all four models.
Swipe the table to compare all dimensions.
| Model / SKU | Construction / display | Scale units | Measurement format | Quantity (pcs) | |
|---|---|---|---|---|---|
| S2605 | Plastic manual gauge | Inch + mm | Sliding depth measurement | ||
| S2606 | Stainless steel manual gauge | 0–25 mm / 0–1 inch; millimeter and 1/32-inch graduations | Sliding depth measurement; 1-1/4-inch base; pocket clip included | ||
| S2607 | Digital depth gauge | Inch + mm | Digital depth reading | ||
| S2608 | Dial depth gauge | Inch + mm | Analog dial depth reading |
Confirm model-specific measuring range and resolution before ordering. No PSI measurement is provided by this depth-gauge series.
Selection checklist: profile and dimensions · tool compatibility · quantity per model
Frequently Asked Questions
Which model is the digital tire tread depth gauge?
S2607 is the digital model. S2605 and S2606 are manual gauges, and S2608 is a dial gauge.
Do these tire depth gauges show inches and millimeters?
The catalogue lists inch and mm scales for all four models. Confirm the exact graduations, range and resolution when requesting a quotation.
Can a tread depth gauge measure tire pressure?
No. Tread depth is a length measurement. Select a tire pressure gauge from the related series for air-pressure readings.
Can I request different models in one quotation?
Yes. Select the required models, enter the quantity for each and use Request Quote for Selected Models. Include your delivery country and any branding or packaging requirements.
