Tire Buffing Wheels

Tire buffing wheels for repair-area surface preparation. Compare five models in standard, back-to-back and dome profiles, including a dome wheel with stem. Check the wheel size and mounting connection before selecting quantities for wholesale supply.

Key Specifications

Model range: 93-165 / 93-165A / 93-166 / 93-167 / 93-168
Listed wheel sizes: 2 / 2-1/2 in (50.8 / 63.5 mm)
Plain arbor hole: 3/8 in (9.5 mm)
Dome mounting: 3/8-24 thread

* Catalogue entries; confirm final specifications.

Select Models Download Catalogue

Ask about this product

Product Details

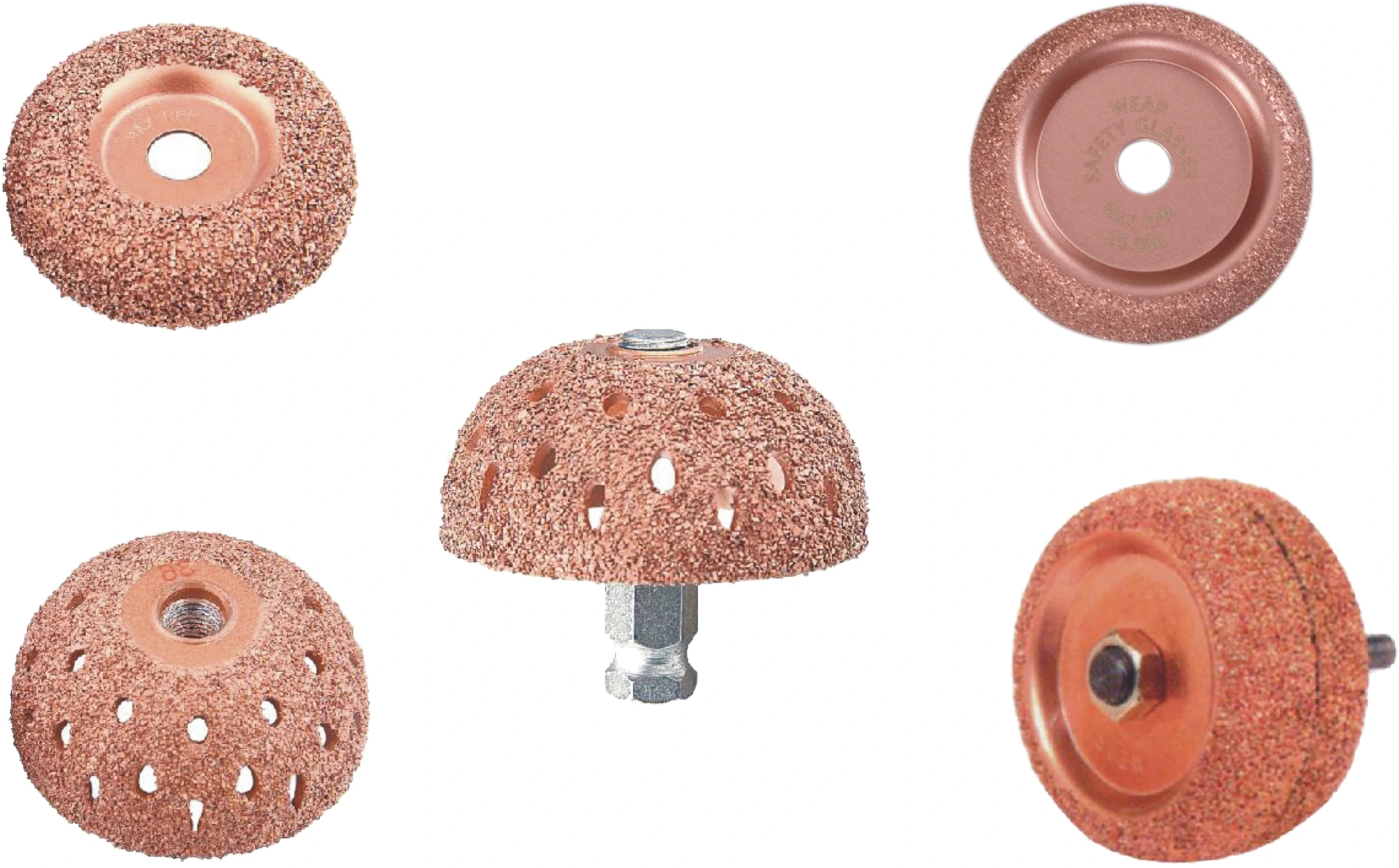

A tire buffer wheel should be selected by its working profile and mounting connection as well as its size. This series includes 2 in wheels, a 2-1/2 in wheel and a back-to-back assembly based on the 93-165A wheel. Models 93-167 and 93-168 use a dome profile; 93-168 includes a stem.

The catalogue separates plain arbor holes from threaded connections. Models 93-165, 93-165A and 93-166 list a 3/8 in (9.5 mm) arbor hole. The dome models list a 3/8-24 thread. Match that connection to your tool or adapter, then confirm the abrasive grade and operating speed for the intended tire-repair process.

Model Differences

93-165: 2 in buffing wheel with a 3/8 in (9.5 mm) arbor hole.
93-165A: 2-1/2 in buffing wheel with a 3/8 in (9.5 mm) arbor hole.
93-166: back-to-back 93-165A wheel assembly; confirm assembled dimensions.
93-167: 2 in dome buffing wheel with 3/8-24 thread.
93-168: 2 in dome buffing wheel with stem; catalogue mounting entry is 3/8-24 thread.

Applications

Tire repair buffing

Use the selected wheel profile to prepare the repair area according to the repair procedure. Compare the standard wheel with the dome profile before choosing your working shape.

Workshop and distributor replacement stock

Order by SKU, wheel size and mounting type. Keep plain-hole wheels and threaded dome wheels identified separately in your stock list to simplify replacement selection.

Confirm abrasive grade, tool or adapter fit and the permitted operating speed for the selected tire buffing wheel.

Models & Specifications

Dimensions shown in inches and millimeters. Select each model and enter your quantity.

5 models

Swipe the table to compare all dimensions.

Model specifications and quotation quantities
Model / SKU	Type	Size (in)	Size (mm)
93-165	Wheel; arbor 3/8 in (9.5 mm)	2	50.8
93-165A	Wheel; arbor 3/8 in (9.5 mm)	2-1/2	63.5
93-166*	Back-to-back 93-165A; arbor 3/8 in (9.5 mm)	Confirm assembly size	Confirm assembly size
93-167	Dome; 3/8-24 thread	2	50.8
93-168	Dome with stem; 3/8-24 thread	2	50.8

Catalogue page 39. Metric wheel sizes are conversions from the listed inch dimensions; the 9.5 mm arbor entry follows the catalogue. A 3/8 in plain hole and a 3/8-24 threaded connection are different mountings. Confirm the assembled dimensions of 93-166.

No models selectedSelect models above to build your inquiry.

Selection checklist: profile and dimensions · tool compatibility · quantity per model

Frequently Asked Questions

Which tire buffing wheels have a plain arbor hole?

Models 93-165, 93-165A and 93-166 list a 3/8 in (9.5 mm) arbor hole. Models 93-167 and 93-168 list a 3/8-24 thread, so their mounting should be checked separately.

How do 93-167 and 93-168 differ?

Both are listed as 2 in dome buffing wheels with a 3/8-24 thread. Model 93-168 is the version with a stem. Include your tool or adapter details when confirming fit.

What size is the back-to-back 93-166 wheel?

The catalogue describes 93-166 as a back-to-back 93-165A wheel. It does not state the overall assembled dimensions. Ask AUTOWIN to confirm the assembly size and clearance required for your equipment.

What should I send a tire buffer wheel supplier for a quotation?

Send the SKU, quantity, required mounting and delivery destination. Include the required abrasive grade and packaging details so the tire buffing wheel specification and wholesale quote can be confirmed.
