English Die Casting DFM & Tooling
Part feasibility, draft, wall thickness, gate strategy, tool structure and maintenance needs reviewed early.
DIE CASTING · CNC MACHINING · FINISHING

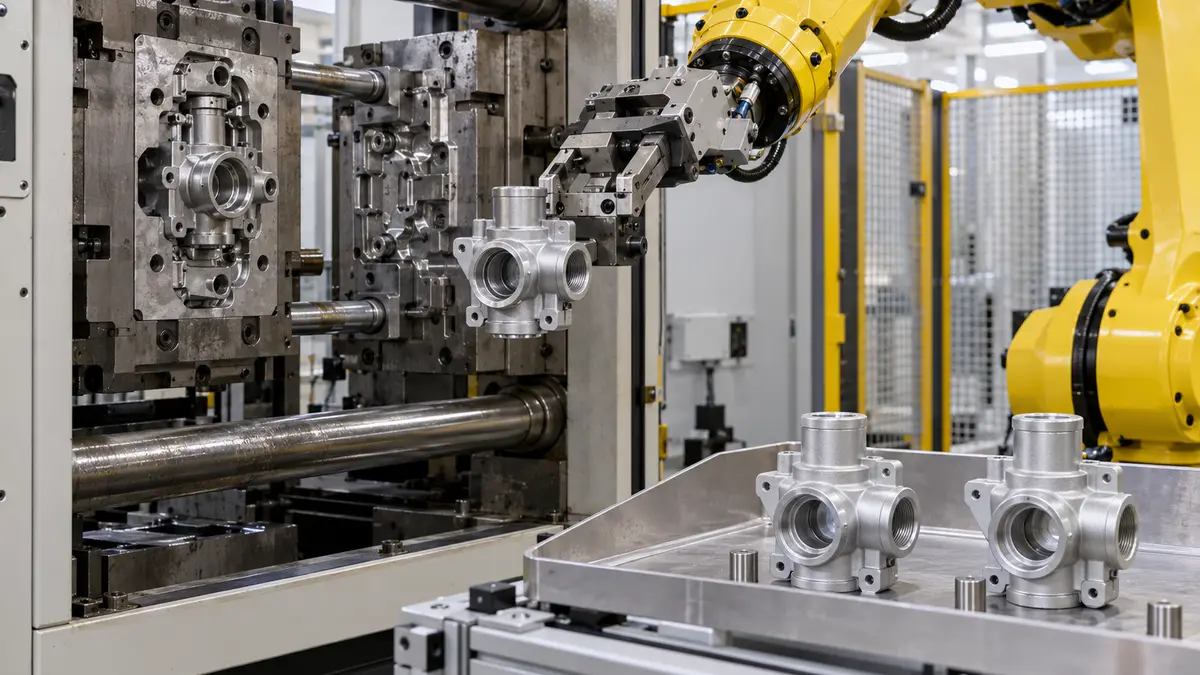

Aluminum Die Cast Components Engineered for Lightweight Strength
AUTOWIN coordinates die-casting DFM, tooling, stable production, precision secondary machining, surface finishing and assembly to deliver production-ready aluminum components for global OEM programs.
Casting to Finished Part
Tooling, production and secondary operations under one workflow
DFM-LedCasting & Tooling Review
Near-Net ShapeEfficient Complex Geometry
CNC SecondaryCritical Features Machined
Finish & AssemblyProduction-Ready Delivery
DESIGN FOR CASTING PERFORMANCE
Engineering the Part, Tool and Downstream Process Together
Successful aluminum die casting depends on more than filling a cavity. Wall thickness, draft, ribs, bosses, gate position, ejection, machining datums and cosmetic surfaces must be considered as one production system.
- Part geometry reviewed for draft, wall balance and casting feasibility
- Gate, overflow, venting and ejection concepts considered during tooling
- Machining allowances and datums planned before mold steel is finalized
- Surface finish, assembly and packaging requirements built into the route
INTEGRATED DIE CASTING CAPABILITIES
From Tooling Development to Finished Aluminum Components
Casting, trimming, machining, finishing and assembly are coordinated around the drawing so buyers can reduce handoffs and maintain control over critical features.
Aluminum Die Casting
Repeatable production of lightweight housings, bodies, brackets and complex custom components.
Precision Secondary Machining
CNC milling, drilling, boring and threading for sealing faces, holes and critical interfaces.
Finishing & Assembly
Deburring, surface preparation, coating, component assembly and export packaging support.
CONTROLLED CASTING WORKFLOW
A Defined Route from Drawing Review to Repeat Production
Engineering, tooling, casting and secondary operations are connected through approval and inspection checkpoints to support consistent production batches.
01
Requirement & DFM Review
Confirm function, alloy, geometry, tolerances, finish, annual volume and quality expectations.
02
Tool Design & Planning
Develop mold structure, cavity strategy, gating, cooling, ejection and maintenance approach.
03
Tool Build & Sampling
Manufacture the die, run initial trials and evaluate dimensions, appearance and casting behavior.
04
Die Casting Production
Control casting conditions and part handling within the approved production route.
05
Trimming & CNC Machining
Remove gates and flash, then machine specified precision features and interfaces.
06
Finish, Inspect & Deliver
Complete surface treatment, assembly, final verification and export-ready packaging.
ALLOYS & FINISHING OPTIONS
Material and Surface Routes Selected for the Final Application
Alloy and finish selection should balance strength, weight, corrosion exposure, appearance, machining needs and product cost.
Casting-Grade Aluminum Alloys
Common and buyer-specified die-casting alloys reviewed against the application.
Buyer-Specified Alloy
Material requirements evaluated for sourcing, castability and documentation needs.
Machined Functional Surfaces
Controlled machining for sealing faces, bores, threads and assembly interfaces.
Deburring & Surface Preparation
Trimming, tumbling, shot blasting or other preparation selected by part requirements.
Powder Coating & Painting
Color and protective finishes coordinated for suitable industrial applications.
Custom Finish Requirements
Appearance, texture, coating and packaging standards reviewed with the project.
PROJECT CAPABILITY MATRIX
Casting Built Around Your Drawing and Supply Model
Send your CAD files, target alloy, expected volume and critical characteristics. Our team will evaluate casting feasibility, tooling, machining, finish and the quality route before quotation.
Project Input2D drawings, 3D models, samples and functional requirements
MaterialsCommon casting-grade aluminum and buyer-specified alloy options
Tooling SupportDFM, die design, tool build, sampling, modification and maintenance
Secondary MachiningMilling, drilling, boring, tapping, threading and critical-surface machining
FinishingDeburring, surface preparation, coating, painting and custom finish coordination
Supply ModelOEM / ODM programs, repeat production, assembly and export packaging
APPLICATION COVERAGE
Lightweight Cast Components for Industrial Product Programs
Aluminum die casting supports complex parts where weight, rigidity, integrated geometry, appearance and repeatable assembly matter.
01Pneumatic Housings
02Automotive Components
03Pump & Valve Bodies
04Tool & Equipment Housings
05Industrial Hardware
06Custom OEM Assemblies
QUALITY ACROSS CASTING AND MACHINING
Critical Features Checked Before the Part Reaches Your Assembly Line
Quality planning connects incoming alloy, casting condition, part appearance, machining dimensions, finish and final assembly requirements throughout the production route.
✓Incoming Alloy ControlSpecified material and applicable supplier information reviewed before production.
✓First-Off ValidationInitial cast and machined parts evaluated before continued batch production.
✓Casting Appearance ReviewVisible surfaces, flash, filling condition and agreed acceptance criteria checked.
✓Dimensional InspectionDrawing dimensions and critical datums measured at planned stages.
✓Machining & Thread ChecksBores, sealing faces, threads and mating features verified with suitable tools.
✓Final & Batch RecordsFinish, assembly, quantity, packaging and production references confirmed.
START YOUR ALUMINUM CASTING PROJECT
Need a Partner for Casting, Machining and Finishing?
Share your drawing, alloy, annual volume, critical dimensions and finish requirements. AUTOWIN will review the complete route from tooling to production-ready delivery.
Request a Die Casting Review→ Typical inquiries receive a response within 24 hours.
