Jacks & Lifting Equipment
Professional Garage Floor Jacks

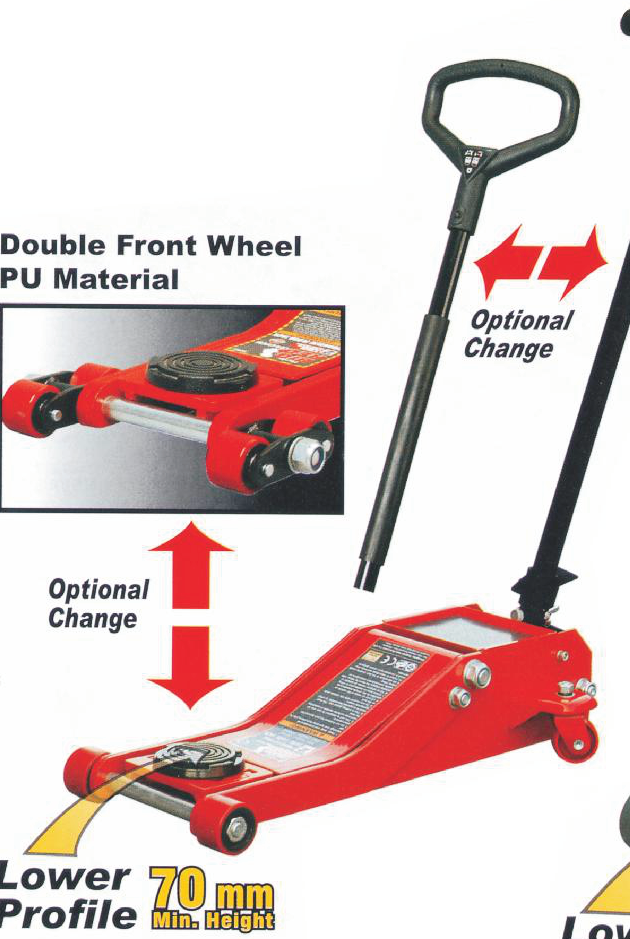

BRPGJ garage jacks include low-clearance and higher-lift configurations. Minimum height, maximum height and body size distinguish the models.
Key Specifications
- Series
- Professional Garage Floor Jacks
- Listed configurations
- 8
- Selection
- Type / capacity · Working dimensions · Weight / packaging
- Catalogue reference
- Tire Service Products, pp. 102
Product Details
Review low profile floor jack specifications and compare the listed models. Select the clearance and lifting range for the vehicle population. Compare body footprint and handling weight for the workshop layout. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences
- BRPGJ001: 2 ton catalogue capacity.
- BRPGJ005: 1.5 ton catalogue capacity.
- BRPGJ008: 2 ton catalogue capacity.
Applications
Typical application
Professional vehicle-service bays.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Type / capacity | Working dimensions | Weight / packaging | Quantity (pcs) | |
|---|---|---|---|---|---|
| BRPGJ001 | 2 ton catalogue capacityConfirm saddle clearance and rating basis. | Min. 70 mm / 2.756 in; max. 500 mm / 19.685 in; body 900 × 450 × 170 mm / 35.43 × 17.72 × 6.69 in | Pack 900 × 450 × 170 mm / 35.43 × 17.72 × 6.69 in; NW/GW 40/44 kg | ||
| BRPGJ002 | 2 ton catalogue capacityConfirm saddle clearance and rating basis. | Min. 80 mm / 3.150 in; max. 510 mm / 20.079 in; body 845 × 400 × 224 mm / 33.27 × 15.75 × 8.82 in | Pack 985 × 460 × 220 mm / 38.78 × 18.11 × 8.66 in; NW/GW 42/45 kg | ||
| BRPGJ003 | 2 ton catalogue capacityConfirm saddle clearance and rating basis. | Min. 76 mm / 2.992 in; max. 510 mm / 20.079 in; body 1006 × 365 × 136 mm / 39.61 × 14.37 × 5.35 in | Pack 1050 × 440 × 195 mm / 41.34 × 17.32 × 7.68 in; NW/GW 42/45 kg | ||
| BRPGJ004 | 3 ton catalogue capacityConfirm saddle clearance and rating basis. | Min. 140 mm / 5.512 in; max. 525 mm / 20.669 in; body 1150 × 350 × 180 mm / 45.28 × 13.78 × 7.09 in | Pack 1280 × 410 × 240 mm / 50.39 × 16.14 × 9.45 in; NW/GW 50/55 kg | ||
| BRPGJ005 | 1.5 ton catalogue capacityConfirm saddle clearance and rating basis. | Min. 130 mm / 5.118 in; max. 535 mm / 21.063 in | Pack 730 × 480 × 200 mm / 28.74 × 18.90 × 7.87 in; NW/GW 32/35.5 kg | ||
| BRPGJ006 | 2 ton catalogue capacityConfirm saddle clearance and rating basis. | Min. 130 mm / 5.118 in; max. 535 mm / 21.063 in | Pack 760 × 480 × 200 mm / 29.92 × 18.90 × 7.87 in; NW/GW 33.5/37 kg | ||
| BRPGJ007 | 1.5 ton catalogue capacityConfirm saddle clearance and rating basis. | Min. 135 mm / 5.315 in; max. 855 mm / 33.661 in | Pack 1120 × 480 × 200 mm / 44.09 × 18.90 × 7.87 in; NW/GW 50/54 kg | ||
| BRPGJ008 | 2 ton catalogue capacityConfirm saddle clearance and rating basis. | Min. 127 mm / 5.000 in; max. 914 mm / 35.984 in | Pack 1620 × 480 × 220 mm / 63.78 × 18.90 × 8.66 in; NW/GW 73.5/80 kg |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.
Frequently Asked Questions
How do I choose the right professional garage floor jacks configuration?
Select the clearance and lifting range for the vehicle population. Compare body footprint and handling weight for the workshop layout.
What is listed for BRPGJ001?
2 ton catalogue capacity. Min. 70 mm / 2.756 in; max. 500 mm / 19.685 in; body 900 × 450 × 170 mm / 35.43 × 17.72 × 6.69 in. Pack 900 × 450 × 170 mm / 35.43 × 17.72 × 6.69 in; NW/GW 40/44 kg. Confirm saddle clearance and rating basis.
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
