Tire Valves & Valve Tools
Passenger & Light-Truck Tire Valves
Passenger and light-truck valves cover rubber snap-in, metal and other catalogue configurations. Valve length, rim-hole fit and construction are listed by model.
Key Specifications
- Series
- Passenger & Light-Truck Tire Valves
- Listed configurations
- 39
- Selection
- Valve type / connection · Dimensions (mm / in) · Angle / selection
- Catalogue reference
- Tire Service Products, pp. 45–46
Product Details
Review tire valve stem specifications and compare the listed models. Match the rim hole, effective length and mounting arrangement. Where several dimensions are shown, distinguish effective length from overall size. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences
- TR412: Tubeless snap-in; hole .453 in / approx. 11.51 mm.
- TR416S: Metal valve; hole 11.5 mm / 0.453 in.
- VS-9: Chrome inner-mount; hole 16 / 11.5 mm (0.625 / 0.453 in).
Applications
Typical application
Passenger and light-truck wheel-service supply.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Valve type / connection | Dimensions (mm / in) | Angle / selection | Quantity (pcs) | |
|---|---|---|---|---|---|
| TR412 | Tubeless snap-in; hole .453 in / approx. 11.51 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length .88 in / 22 mm | 65 PSI maximum cold inflation | ||
| TR413 | Tubeless snap-in; hole .453 in / approx. 11.51 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length 1.25 in / 32 mm | 65 PSI maximum cold inflation | ||
| TR414 | Tubeless snap-in; hole .453 in / approx. 11.51 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length 1.50 in / 38 mm | 65 PSI maximum cold inflation | ||
| TR414L | Tubeless snap-in; hole .453 in / approx. 11.51 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length 1.75 in / 45 mm | 65 PSI maximum cold inflation | ||
| TR415 | Tubeless snap-in; hole .625 in / approx. 15.88 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length 1.25 in / 32 mm | 65 PSI maximum cold inflation | ||
| TR418 | Tubeless snap-in; hole .453 in / approx. 11.51 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length 2.00 in / 51 mm | 65 PSI maximum cold inflation | ||
| TR423 | Tubeless snap-in; hole .453 in / approx. 11.51 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length 2.50 in / 64 mm | 65 PSI maximum cold inflation | ||
| TR425 | Tubeless snap-in; hole .625 in / approx. 15.88 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length 2.00 in / 51 mm | 65 PSI maximum cold inflation | ||
| TR429 | Tubeless snap-in; hole .346 in / approx. 8.79 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length 2.00 in / 51 mm | 65 PSI maximum cold inflation | ||
| TR438 | Tubeless snap-in; hole .346 in / approx. 8.79 mmCatalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements. | Effective length 1.25 in / 32 mm | 65 PSI maximum cold inflation | ||
| TR600HP | High-pressure snap-in; hole .453 in / approx. 11.51 mmCatalogue maximum rim thickness 0.205 in / approx. 5.21 mm. | Effective length 1.27 in / 32 mm | 100 PSI maximum cold inflation | ||
| TR602HP | High-pressure snap-in; hole .453 in / approx. 11.51 mmCatalogue maximum rim thickness 0.205 in / approx. 5.21 mm. | Effective length 2.00 in / 51 mm | 100 PSI maximum cold inflation | ||
| TR801HP | High-pressure snap-in; hole .625 in / approx. 15.88 mmCatalogue maximum rim thickness 0.205 in / approx. 5.21 mm. | Effective length 1.31 in / 33 mm | 100 PSI maximum cold inflation | ||
| TR802HP | High-pressure snap-in; hole .625 in / approx. 15.88 mmCatalogue maximum rim thickness 0.205 in / approx. 5.21 mm. | Effective length 2.00 in / 51 mm | 100 PSI maximum cold inflation | ||

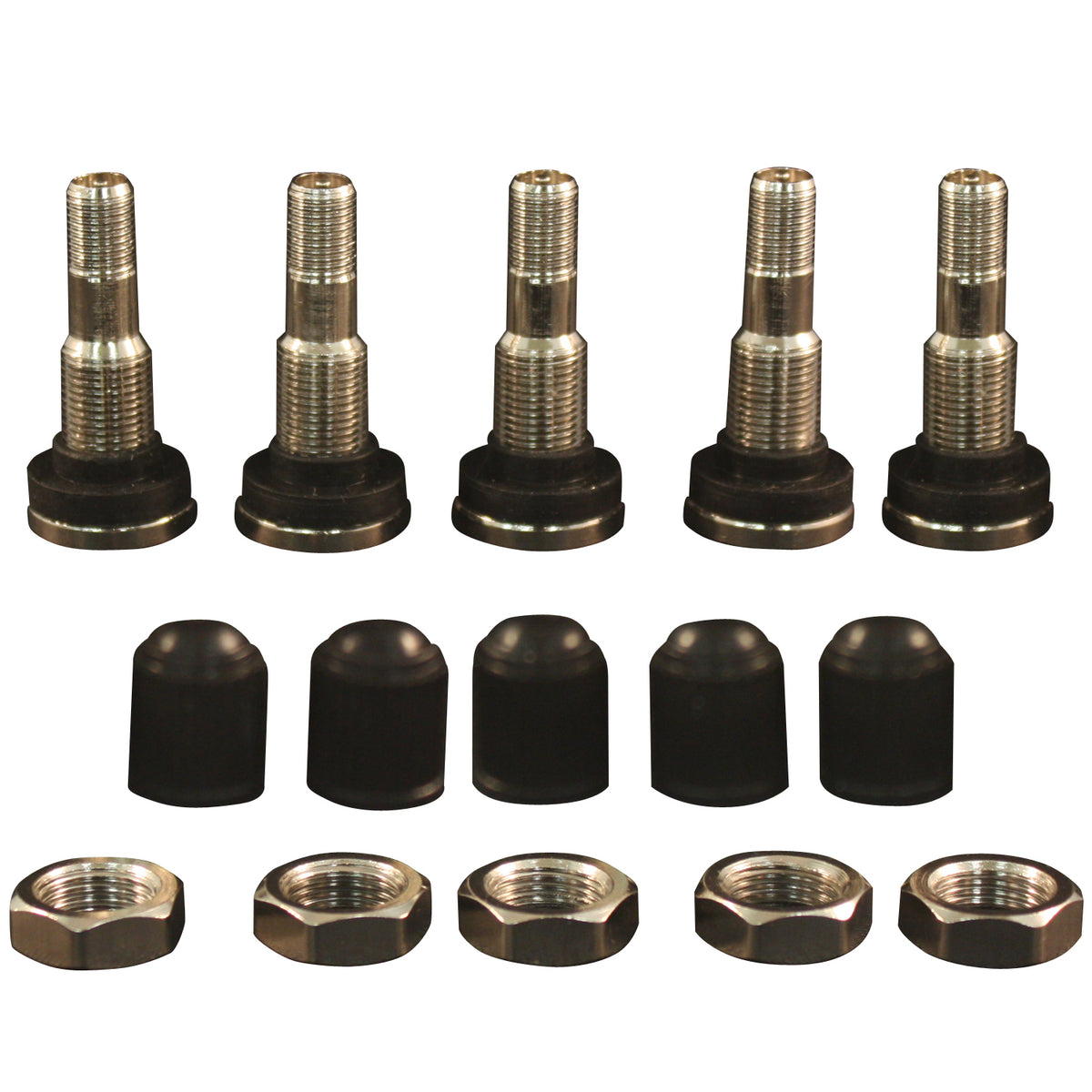

| TR416 | Bolt-in / flush mount; holes 11.5 / 16 mm (0.453 / 0.625 in)Reference dimensions on p46 and A-height on p45 describe different measurements. | Reference Ø18.5 × 40 mm (Ø0.728 × 1.575 in approx.); A-height 1.44 in / 36.6 mm | Straight | ||
| TR416L | Bolt-in / flush mount; holes 11.5 / 16 mm (0.453 / 0.625 in)Reference dimensions on p46 and A-height on p45 describe different measurements. | Reference Ø16.7 × 59 mm (Ø0.657 × 2.323 in approx.); A-height 2.25 in / 57 mm | Straight | ||
| TR417 | Bolt-in / flush mount; hole 0.453 in / approx. 11.5 mm | A-height 0.38 in / 9.65 mm; B-length 2.5 in / 63.5 mm | 70° | ||
| TR13 | Tube-type replacement; hole 11.5 mm / 0.453 inDiameter × listed length; maximum rim thickness 0.156 in / approx. 3.96 mm. | 56 × 38 mm / 2.205 × 1.496 in (approx.) | 65 PSI maximum cold inflation | ||
| TR15 | Tube-type replacement; hole 16 mm / 0.625 inDiameter × listed length; maximum rim thickness 0.156 in / approx. 3.96 mm. | 56 × 38 mm / 2.205 × 1.496 in (approx.) | 65 PSI maximum cold inflation | ||
| TR416S | Metal valve; hole 11.5 mm / 0.453 inPlate washer | Reference Ø17 × 40 mm / 0.669 × 1.575 in (approx.) | Confirm wheel fit | ||
| TR416SS | Metal valve; hole 11.5 mm / 0.453 in | Reference Ø14 × 38 mm / 0.551 × 1.496 in (approx.) | Confirm wheel fit | ||
| TR416SSS | Metal valve; hole 8.3 mm / 0.327 in | Reference Ø14 × 39 mm / 0.551 × 1.535 in (approx.) | Confirm wheel fit | ||
| TR525S | Metal valve; hole 11.5 mm / 0.453 inShort nut | Reference Ø17.5 × 41.5 mm / 0.689 × 1.634 in (approx.) | Confirm wheel fit | ||
| TR525L | Metal valve; hole 11.5 mm / 0.453 inLong nut | Reference Ø17.5 × 41.5 mm / 0.689 × 1.634 in (approx.) | Confirm wheel fit | ||
| TR525AL | Metal valve; hole 11.5 mm / 0.453 inPlastic washer | Reference Ø17.5 × 42 mm / 0.689 × 1.654 in (approx.) | Confirm wheel fit | ||
| 17-43001 | TPMS snap-in; hole 0.575 in / approx. 14.61 mmDimensions retained as printed; TPMS compatibility is not established by rim-hole size alone. | 0.775 × 2.1 in / 19.7 × 53.5 mm | Confirm sensor compatibility | ||
| 17-43002 | TPMS snap-in; hole 0.453 in / approx. 11.51 mmDimensions retained as printed; TPMS compatibility is not established by rim-hole size alone. | 0.68 × 1.78 in / 17.5 × 45.5 mm | Confirm sensor compatibility | ||
| 17-43004 | TPMS snap-in; hole 0.453 in / approx. 11.51 mmDimensions retained as printed; TPMS compatibility is not established by rim-hole size alone. | 0.59 × 2.12 in / 15 × 54 mm | Confirm sensor compatibility | ||
| TR5991B | Chrome inner-mount; hole 16 / 11.5 mm (0.625 / 0.453 in)Dimension labels follow catalogue reference drawing. | Reference Ø19 × 34 mm / 0.748 × 1.339 in (approx.) | Straight | ||
| VS-6 | Chrome inner-mount; hole 6 mm / 0.236 inDimension labels follow catalogue reference drawing. | Reference Ø11 × 40 mm / 0.433 × 1.575 in (approx.) | Straight | ||
| VS-8 | Chrome inner-mount; hole 11.5 mm / 0.453 inDimension labels follow catalogue reference drawing. | Reference Ø16 × 38 mm / 0.63 × 1.496 in (approx.) | Straight | ||
| VS-8-45 | Chrome inner-mount; hole 11.5 mm / 0.453 inDimension labels follow catalogue reference drawing. | Reference Ø16 × 53 mm / 0.63 × 2.087 in (approx.) | 45° | ||
| VS-8-90 | Chrome inner-mount; hole 11.5 mm / 0.453 inDimension labels follow catalogue reference drawing. | Reference Ø16 × 63 mm / 0.63 × 2.48 in (approx.) | 90° | ||
| VS-8+7 | Chrome inner-mount; hole 11.5 mm / 0.453 inDimension labels follow catalogue reference drawing. | Reference Ø16 × 45 mm / 0.63 × 1.772 in (approx.) | Straight | ||
| VS-8+12 | Chrome inner-mount; hole 11.5 mm / 0.453 inDimension labels follow catalogue reference drawing. | Reference Ø16 × 50 mm / 0.63 × 1.969 in (approx.) | Straight | ||
| VS-8-XL | Chrome inner-mount; hole 11.5 mm / 0.453 inDimension labels follow catalogue reference drawing. | Reference Ø16 × 62 mm / 0.63 × 2.441 in (approx.) | Straight | ||
| S131+10 | Chrome inner-mount; hole 11.5 mm / 0.453 inDimension labels follow catalogue reference drawing. | Reference Ø14 × 43 mm / 0.551 × 1.693 in (approx.) | Straight | ||
| S131-90 | Chrome inner-mount; hole 11.5 mm / 0.453 inDimension labels follow catalogue reference drawing. | Reference Ø14 × 30 × 38.2 mm / 0.551 × 1.181 × 1.504 in (approx.) | 90° | ||
| VS-9 | Chrome inner-mount; hole 16 / 11.5 mm (0.625 / 0.453 in)Dimension labels follow catalogue reference drawing. | Reference Ø18 × 29.5 mm / 0.709 × 1.161 in (approx.) | Straight |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.
Additional Existing Products
These existing items are listed separately from the current catalogue model table.
Frequently Asked Questions
How do I choose the right passenger & light-truck tire valves configuration?
Match the rim hole, effective length and mounting arrangement. Where several dimensions are shown, distinguish effective length from overall size.
What is listed for TR412?
Tubeless snap-in; hole .453 in / approx. 11.51 mm. Effective length .88 in / 22 mm. 65 PSI maximum cold inflation. Catalogue maximum rim thickness 0.156 in / approx. 3.96 mm. Match the valve to wheel, speed rating and pressure requirements.
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
