Tire Valves & Valve Tools

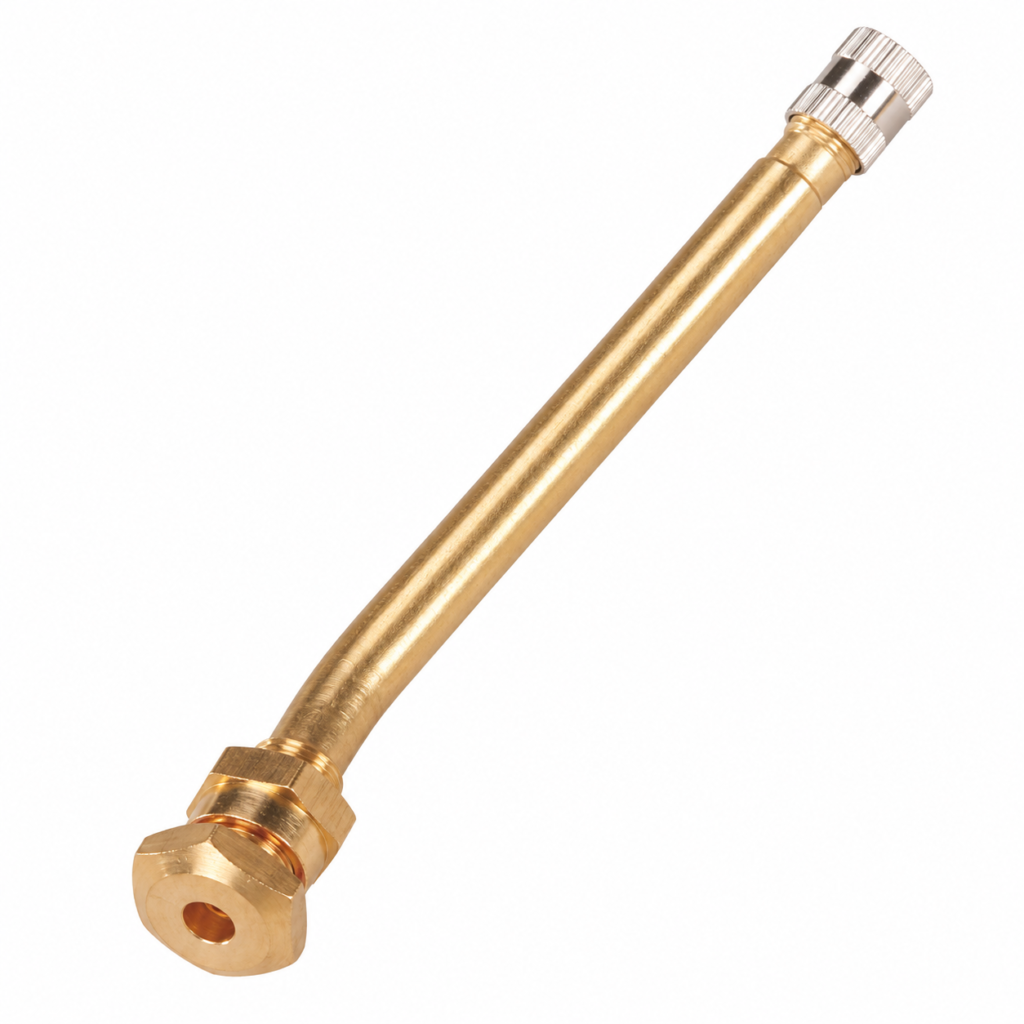

Heavy-Truck Tire Valves
Heavy-truck tire valves include straight and angled metal configurations. Their reach and bend geometry help define access at the wheel.
Key Specifications
- Series
- Heavy-Truck Tire Valves
- Listed configurations
- 22
- Selection
- Valve type / connection · Dimensions (mm / in) · Angle / selection
- Catalogue reference
- Tire Service Products, pp. 47
Product Details
Review truck tire valve stem specifications and compare the listed models. Compare rim-hole fit, length and angle as a complete configuration. Confirm the required mounting hardware and sealing arrangement. The specification table lists the catalogue models and ordering configurations on this page. Include the selected model, configuration and quantity in your quotation request.
Model Differences
- TR500: Brass; 16 mm / 0.625 in rim hole.
- TR543: Nickel plated; 9.7 mm / 0.382 in rim hole.
- TR511: Nickel plated; 0.625 in / approx. 15.88 mm rim hole.
Applications
Typical application
Truck wheel maintenance and fleet-service stock.
Distributor and workshop orders
Specify the model mix and quantity required for your stock range. Include destination and packaging requirements so the quotation can address the intended order.
Models & Specifications
Compare specifications and select the models or size configurations for your quotation.
Swipe the table to compare all dimensions.
| Model / SKU | Valve type / connection | Dimensions (mm / in) | Angle / selection | Quantity (pcs) | |
|---|---|---|---|---|---|
| TR500 | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 2.00 in / 51 mm | Straight | ||
| TR501 | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 1.50 in / 38 mm | Straight | ||
| TR570 | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 3.13 in / 80 mm | Straight | ||
| TR571 | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 3.38 in / 86 mm | Straight | ||
| TR572 | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 3.75 in / 95 mm | Straight | ||
| TR573 | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 4.38 in / 111 mm | Straight | ||
| TR574 | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 5.00 in / 127 mm | Straight | ||
| TR575 | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 1.13 in / 29 mm | Straight | ||
| TR570C | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 3.30 in / 84 mm | 90° | ||
| TR501-0V | Brass; oval rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 1.50 in / 38 mm | Straight | ||
| TR500-23 | Brass; 16 mm / 0.625 in rim holeFor steel wheels; confirm model and sealing arrangement. | Listed size 2.16 in / 55 mm | 23° | ||
| TR543 | Nickel plated; 9.7 mm / 0.382 in rim holeFor aluminum wheels. Inch values calculated from metric dimensions. | A-height 59 mm / 2.323 in (approx.) | Straight | ||
| TR543D | Nickel plated; 9.7 mm / 0.382 in rim holeFor aluminum wheels. Inch values calculated from metric dimensions. | A-height 25 mm / 0.984 in (approx.); B-length 35 mm / 1.378 in (approx.) | 60° | ||
| TR543E | Nickel plated; 9.7 mm / 0.382 in rim holeFor aluminum wheels. Inch values calculated from metric dimensions. | A-height 25 mm / 0.984 in (approx.); B-length 35 mm / 1.378 in (approx.) | 75° | ||
| TR544 | Nickel plated; 9.7 mm / 0.382 in rim holeFor aluminum wheels. Inch values calculated from metric dimensions. | A-height 72.6 mm / 2.858 in (approx.) | Straight | ||
| TR544D | Nickel plated; 9.7 mm / 0.382 in rim holeFor aluminum wheels. Inch values calculated from metric dimensions. | A-height 25 mm / 0.984 in (approx.); B-length 49.3 mm / 1.941 in (approx.) | 60° | ||
| TR545 | Nickel plated; 9.7 mm / 0.382 in rim holeFor aluminum wheels. Inch values calculated from metric dimensions. | A-height 89 mm / 3.504 in (approx.) | Straight | ||
| TR545D | Nickel plated; 9.7 mm / 0.382 in rim holeFor aluminum wheels. Inch values calculated from metric dimensions. | A-height 25 mm / 0.984 in (approx.); B-length 66 mm / 2.598 in (approx.) | 60° | ||
| TR546D | Nickel plated; 9.7 mm / 0.382 in rim holeFor aluminum wheels. Inch values calculated from metric dimensions. | A-height 25 mm / 0.984 in (approx.); B-length 85 mm / 3.346 in (approx.) | 60° | ||
| TR509 | Nickel plated; 0.625 in / approx. 15.88 mm rim holeFor aluminum wheels. | Reference Ø23 × 138.5 mm / 0.906 × 5.453 in (approx.) | 90° | ||
| TR510 | Nickel plated; 0.625 in / approx. 15.88 mm rim holeFor aluminum wheels. | Reference Ø23 × 157.5 mm / 0.906 × 6.201 in (approx.) | 90° | ||
| TR511 | Nickel plated; 0.625 in / approx. 15.88 mm rim holeFor aluminum wheels. | Reference Ø23 × 126 mm / 0.906 × 4.961 in (approx.) | 90° |
Dimensions are catalogue values unless labelled as converted. Approximate inch conversions use 25.4 mm per inch. Thread designations remain unchanged. Read configuration notes before ordering.
Include the complete configuration and quantity for each selected model.

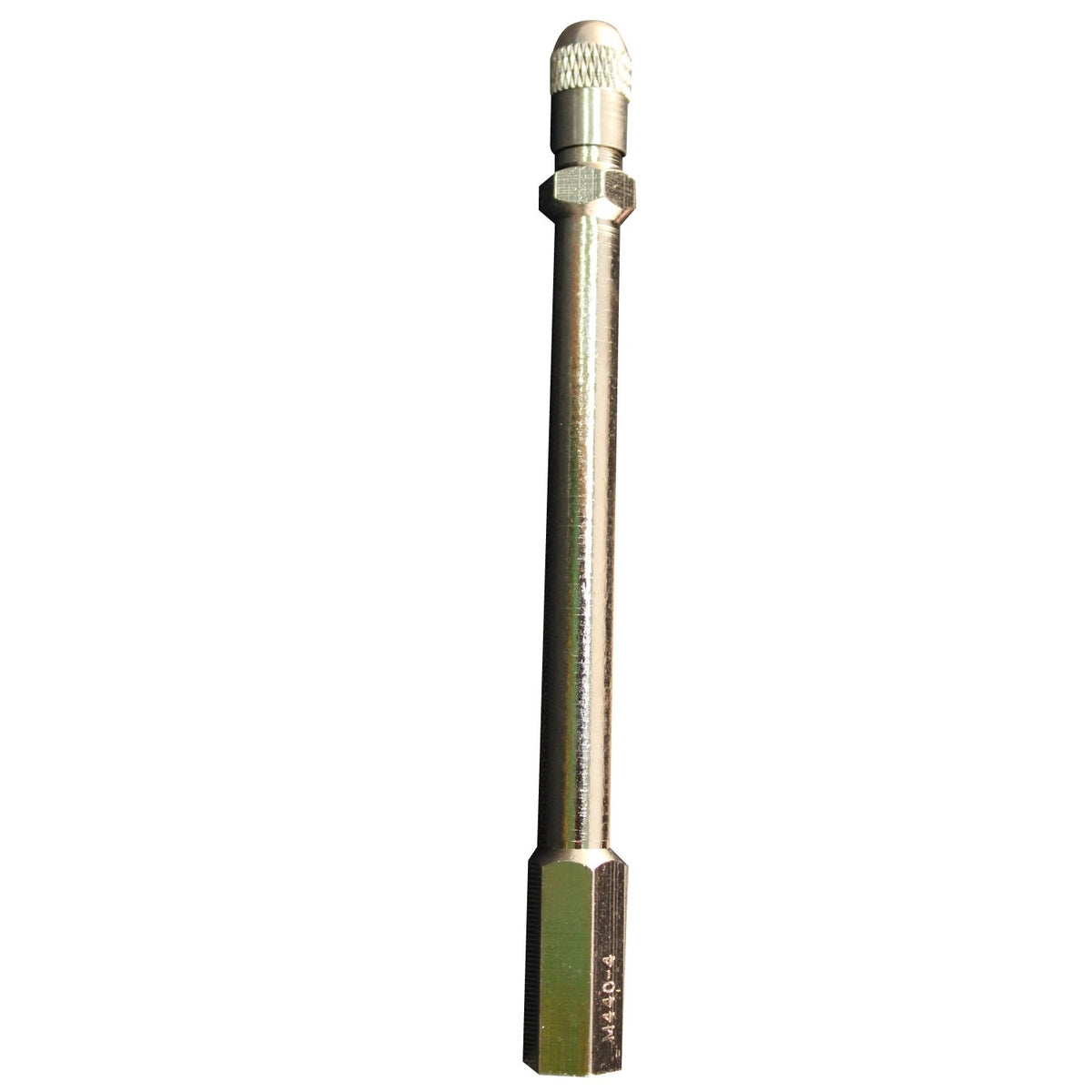

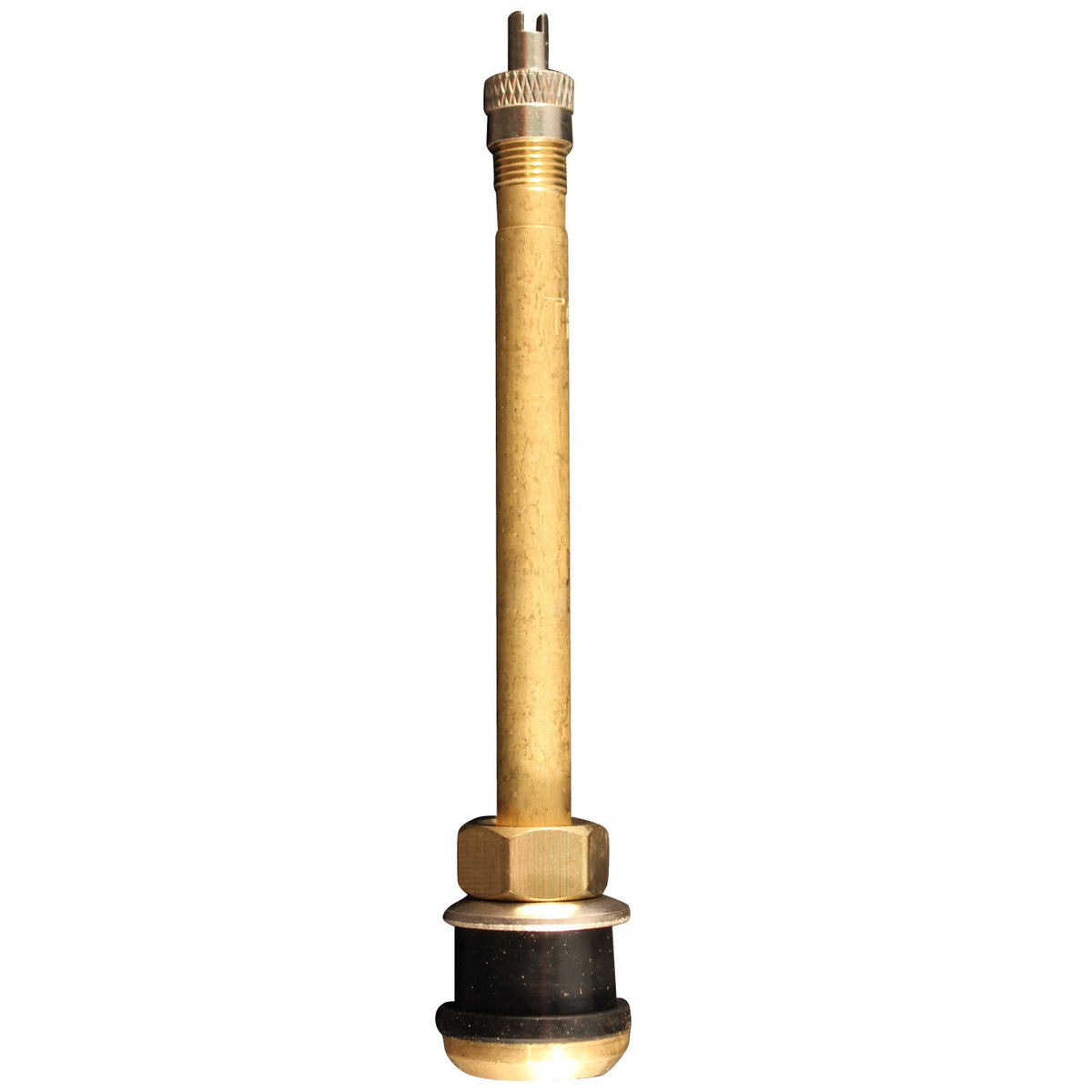

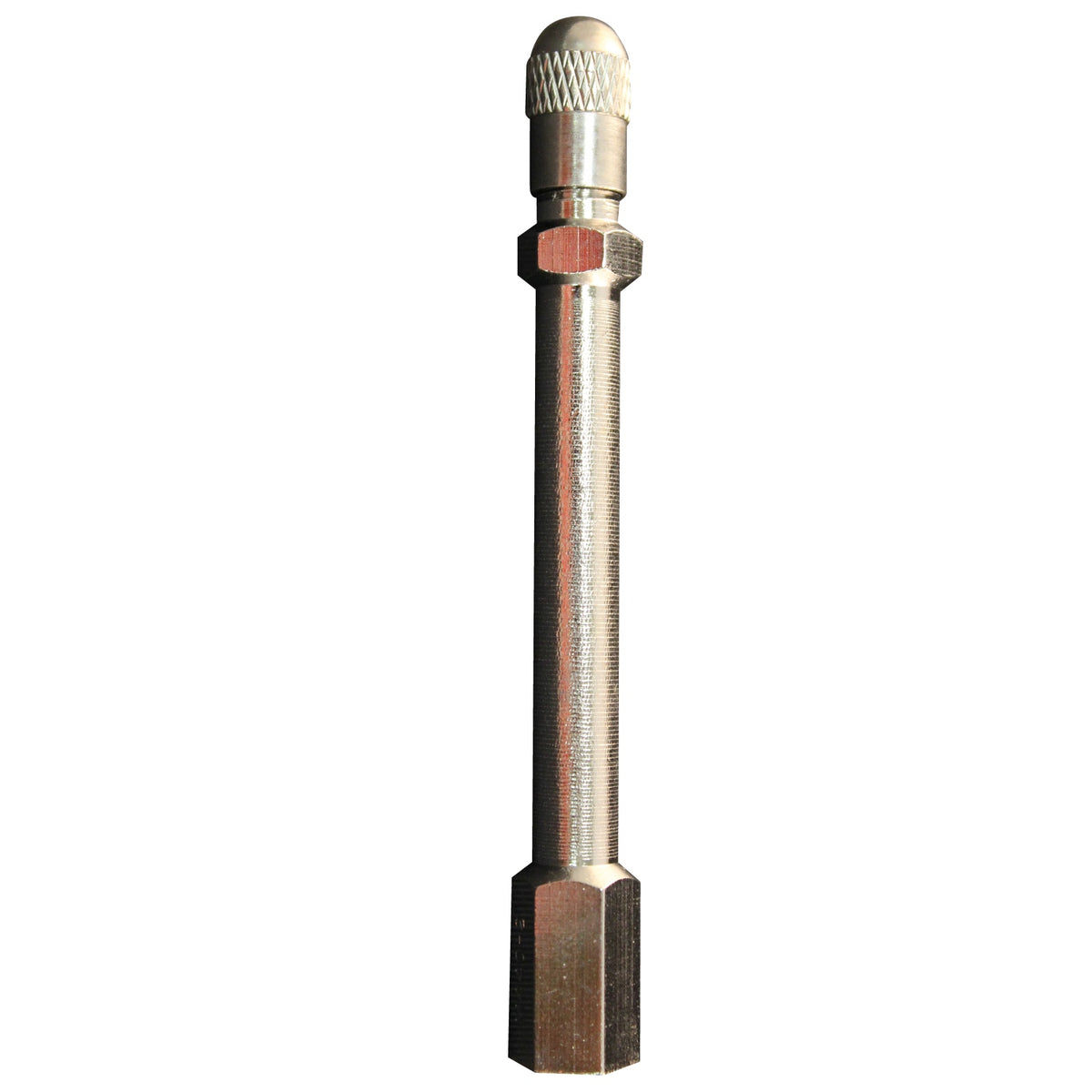

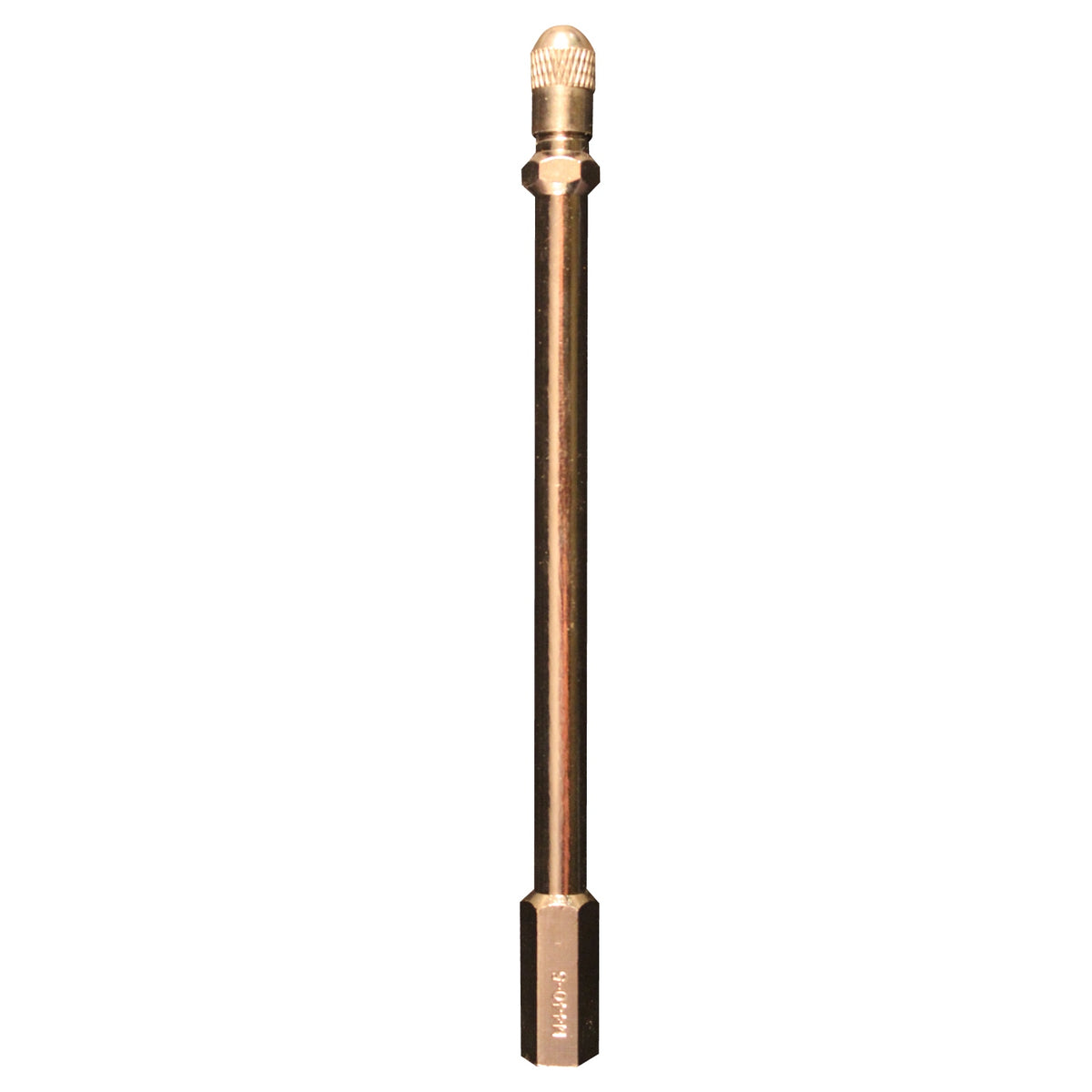

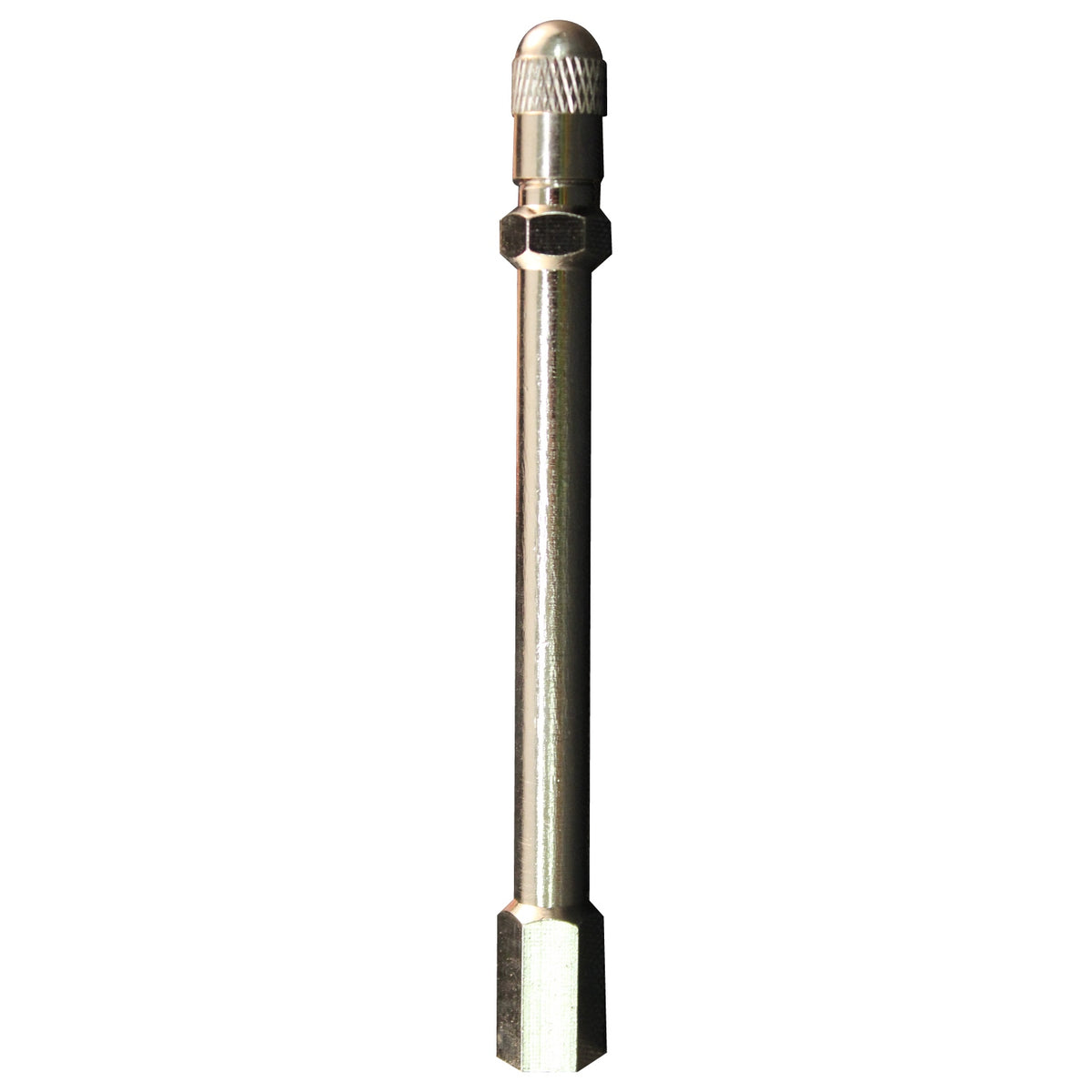

Additional Existing Products
These existing items are listed separately from the current catalogue model table.
Frequently Asked Questions
How do I choose the right heavy-truck tire valves configuration?
Compare rim-hole fit, length and angle as a complete configuration. Confirm the required mounting hardware and sealing arrangement.
What is listed for TR500?
Brass; 16 mm / 0.625 in rim hole. Listed size 2.00 in / 51 mm. Straight. For steel wheels; confirm model and sealing arrangement.
What should I include in a wholesale quotation request?
Select the required models or configurations and enter quantities. Add your delivery country and packaging requirements. For a repeated catalogue model, include the size, thread or other configuration shown in the table.
