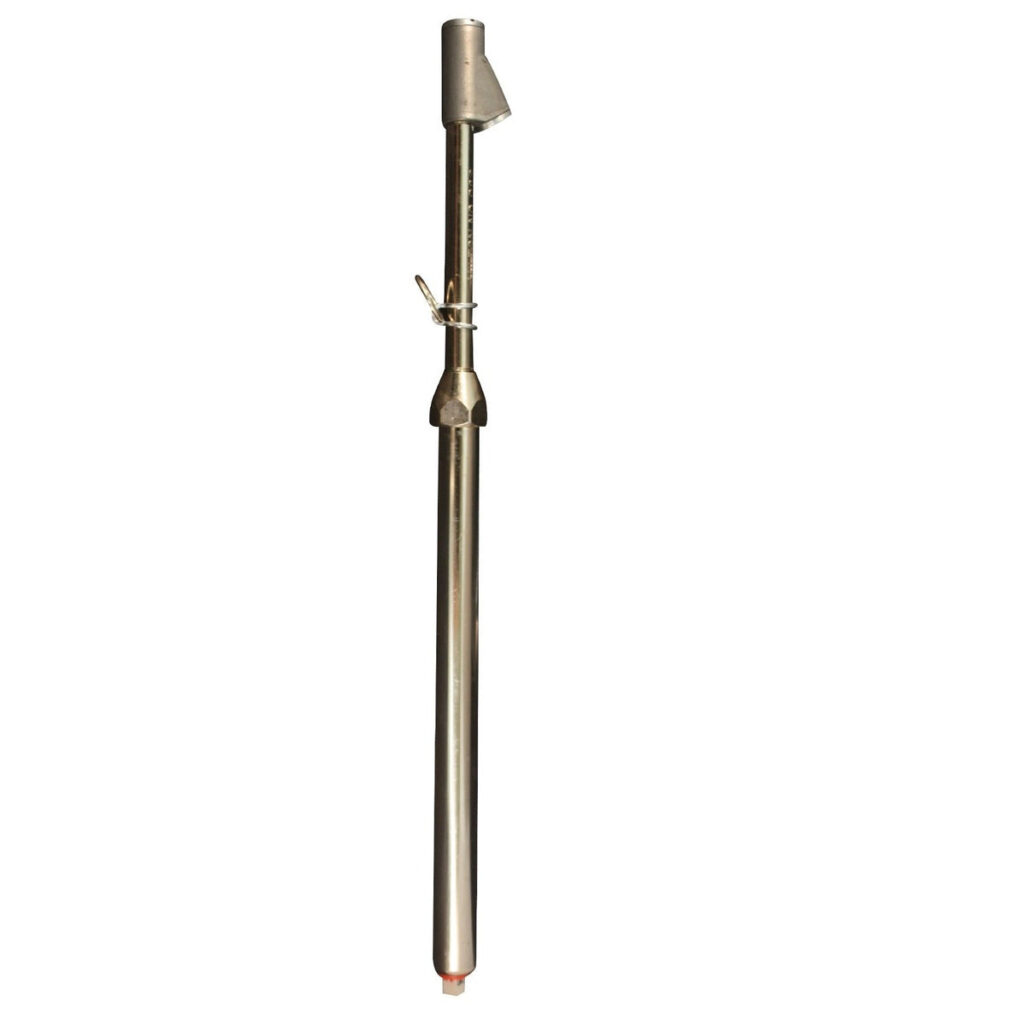

Straight-Foot Dual-Head Tire Service Gauge, 10–160 PSI

The straight-foot dual-head chuck distinguishes this tire service gauge from a single-head pressure-checking tool. Its published range is 10–160 PSI, with 2 PSI increments and an 80–1100 kPa metric range. A sliding indicator bar is listed as the reading format, making it a separate choice from a dial or digital tire gauge.

Check valve access using the actual wheel and valve arrangement. A dual-head design offers different approaches to the valve, but it does not by itself guarantee access to every inner or outer valve on a truck or dual-wheel assembly. Supply the valve orientation and clearance requirement when selecting a replacement for a fleet or workshop tool program.

The published construction is a plated brass tube with a four-sided nylon indicator bar, and overall length is listed as 13 1/4 in. The PSI increments describe scale divisions rather than an accuracy tolerance; no kPa increment is supplied. Retain any additional dimensions required for sample approval separately. Likewise, do not carry a calibration or certification claim over from another 10–160 PSI service-gauge listing simply because the pressure ranges match.

For a wholesale order, specify the straight-foot dual-head configuration, 10–160 PSI range, required piece quantity and destination. Include the scale, packing and identification requirements so the offered version can be reviewed as a complete tool. Keep the approved sample or drawing with the purchase record for repeat supply. Buyers stocking more than one service-gauge range should identify each range and chuck style separately rather than treating all sliding-bar gauges as interchangeable.

Published Specifications
Product Type: Tire Pressure Gauge
Pressure Range: 10–160 PSI
PSI Increments: 2 PSI
Metric Range: 80–1100 kPa
Gauge Type: Straight-foot dual-head chuck service gauge
Listed material (component not identified): Brass
Published chuck / head description: Straight Foot
Construction: Plated brass tube with a four-sided nylon indicator bar
Overall Length: 13 1/4"
Chuck Configuration: Dual-head
Chuck Style: Straight-foot

Product FAQs
1. What is the listed measuring range for this straight-foot gauge?
The published facts are 10–160 PSI, 2 PSI increments and an 80–1100 kPa metric range. A kPa scale interval is not stated in the supplied fields.

2. Does a dual-head chuck guarantee access to every truck valve?
No universal fit is established. Check the wheel opening, valve direction and available clearance against the supplied head geometry and reach.

3. Is a re-calibration procedure specified for this reference?
The current record does not describe a re-calibration procedure or certificate. Do not import those claims from another service-gauge product with the same pressure range.

4. Which option provides a different range with a similar chuck description?
Compare the 20–120 PSI straight-foot dual-head gauge. The head description is similar, but the published pressure ranges differ and each configuration needs its own fitment review.
