Ball-Foot & Clip-On Air Chucks

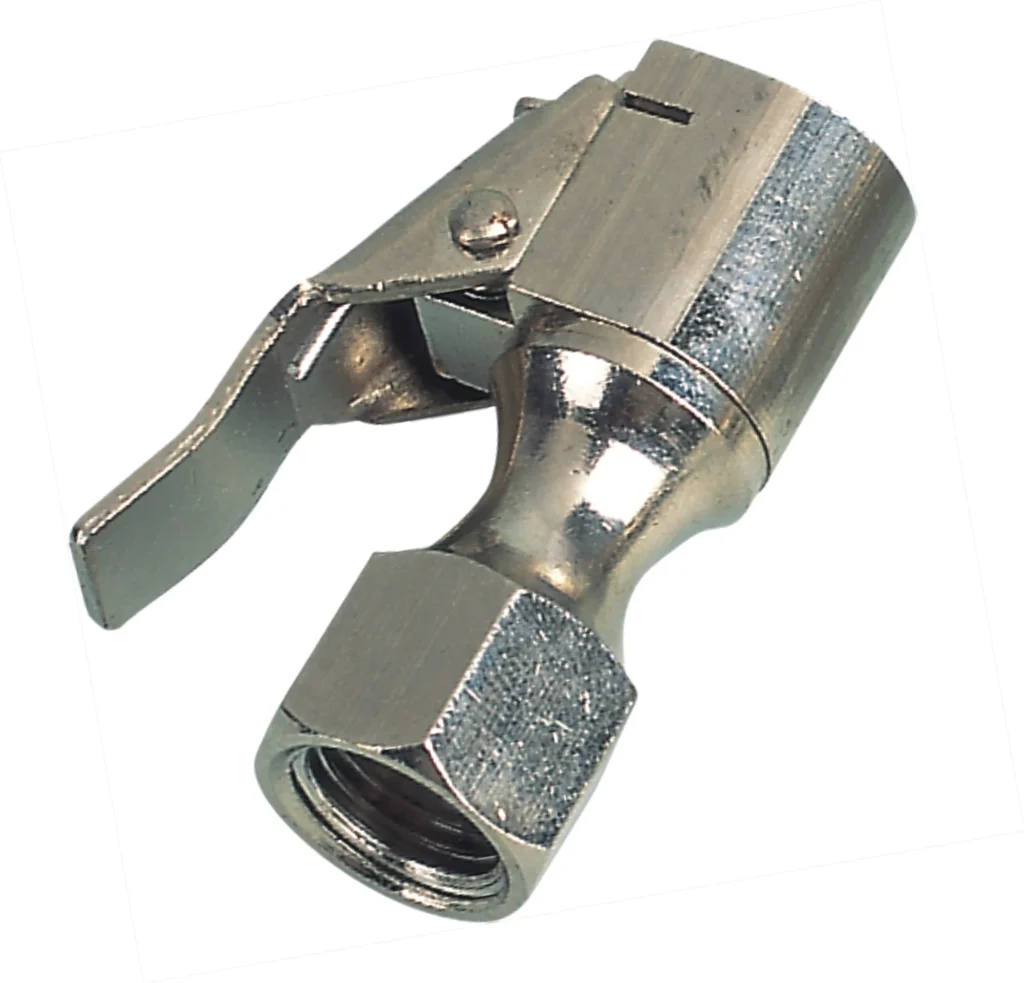

AUTOWIN Ball-Foot Or Clip-On Tire Air Chuck – ATC-12
ATC-12 pairs a listed 1/4 in NPT connection with open operation in AUTOWIN's ball-foot and clip-on air chuck range. It gives buyers a threaded-connection reference when evaluating a replacement tire chuck for an existing inflation setup. The published connection does not identify thread gender, so confirm the mating fitting before selection. Use the model number, open valve requirement and assembly details to define a workshop or wholesale inquiry.
Key Specifications
| Part No. | ATC-12 |
|---|---|
| Product Type | Ball-Foot Or Clip-On Tire Air Chuck |
| Primary Use | routine tire inflation at accessible valve stems |
| Ideal For | tire shops, automotive distributors and service-equipment programs |
| Supply Support | OEM/ODM development for B2B orders |
Overview
A threaded replacement must match more than its nominal size. ATC-12 is specified as 1/4 in NPT with an open valve type, making those the starting points for an equipment comparison. Check the mating fitting, required thread gender and the available space at the tire valve against the existing assembly. This approach keeps the inlet connection and the valve-side arrangement in the same specification review instead of assuming that all 1/4 in air chucks share one fit.
For purchasing teams, the ATC-12 reference helps separate this open NPT model from hose-barb products and the closed ATC-16 version. Include the intended inflation equipment, required pressure and a sample or drawing when asking for a quotation. The current listing does not provide a pressure rating or thread gender, so those details should be confirmed for the selected configuration. Supply quantities and packing requirements after identifying the connection needed for the replacement program.
Applications
• Replacement evaluation for tire-inflation equipment using a matching NPT connection.
• Workshop sourcing where open chuck operation is specified.
• Wholesale assortments organized by threaded connection and valve operation.
For purchasing teams, the ATC-12 reference helps separate this open NPT model from hose-barb products and the closed ATC-16 version. Include the intended inflation equipment, required pressure and a sample or drawing when asking for a quotation. The current listing does not provide a pressure rating or thread gender, so those details should be confirmed for the selected configuration. Supply quantities and packing requirements after identifying the connection needed for the replacement program.
Applications
• Replacement evaluation for tire-inflation equipment using a matching NPT connection.
• Workshop sourcing where open chuck operation is specified.
• Wholesale assortments organized by threaded connection and valve operation.
Consistent Quality
Controlled manufacturing processes help maintain consistent product quality.
Quality Inspected
Key specifications and workmanship are carefully checked before shipment.
OEM & ODM Support
Custom specifications, branding, packaging, and product solutions are available.
Key Specifications
Connection: 1/4 in NPT- Valve Type: Open
- Primary Application: routine tire inflation at accessible valve stems
- Listed connection: 1/4 in NPT.
- Listed valve type: Open.
- ATC-12 identifies the threaded open version for model-based sourcing.
- Confirm thread gender, mating fit and operating requirements for the intended assembly.
Model & Specifications
Review the product specifications and enter the quantity required for your quotation.
Swipe the table to view all columns.
| Model / SKU | Specifications | Quantity (pcs) | |
|---|---|---|---|
| ATC-12 |
|
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | ATC-12 |
| Quality Management | ISO 9001:2015 quality management system |
| Inspection Resources | Hydraulic pressure testing equipment for applicable tire-inflation components |
| Customization Support | Product development from customer drawings or samples |
| After-Sales Support | Technical and quality-related follow-up for B2B orders |
| Selection Note | Confirm open or closed operation, chuck style, thread or hose-barb size and pressure requirement before ordering |
Product FAQs
Does the ATC-12 listing identify a female NPT inlet?
The listed connection is 1/4 in NPT, without a stated male or female designation. Send the mating fitting details or an existing sample so thread gender and fit can be confirmed before this model is selected.
What distinguishes ATC-12 from ATC-16?
ATC-12 lists an open valve type, while ATC-16 lists a closed valve type. Both describe a 1/4 in NPT connection. Match the required operation as well as the inlet fitting when comparing these models for a replacement.
Can I select ATC-12 using connection size alone?
Connection size provides a starting point, but the complete selection also needs thread gender, valve access and the required chuck operation. Include the intended equipment and operating pressure so the proposed arrangement can be reviewed against the assembly requirements.
What should a distributor include in an ATC-12 inquiry?
Identify ATC-12, the 1/4 in NPT connection and the open valve requirement. Add mating fitting information, expected quantities and packaging needs. An existing assembly drawing helps clarify the connection and handling requirements for a replacement assortment.
Related models: Compare the closed NPT ATC-16 | Review the open hose-barb ATC-11
