Ball-Foot & Clip-On Air Chucks

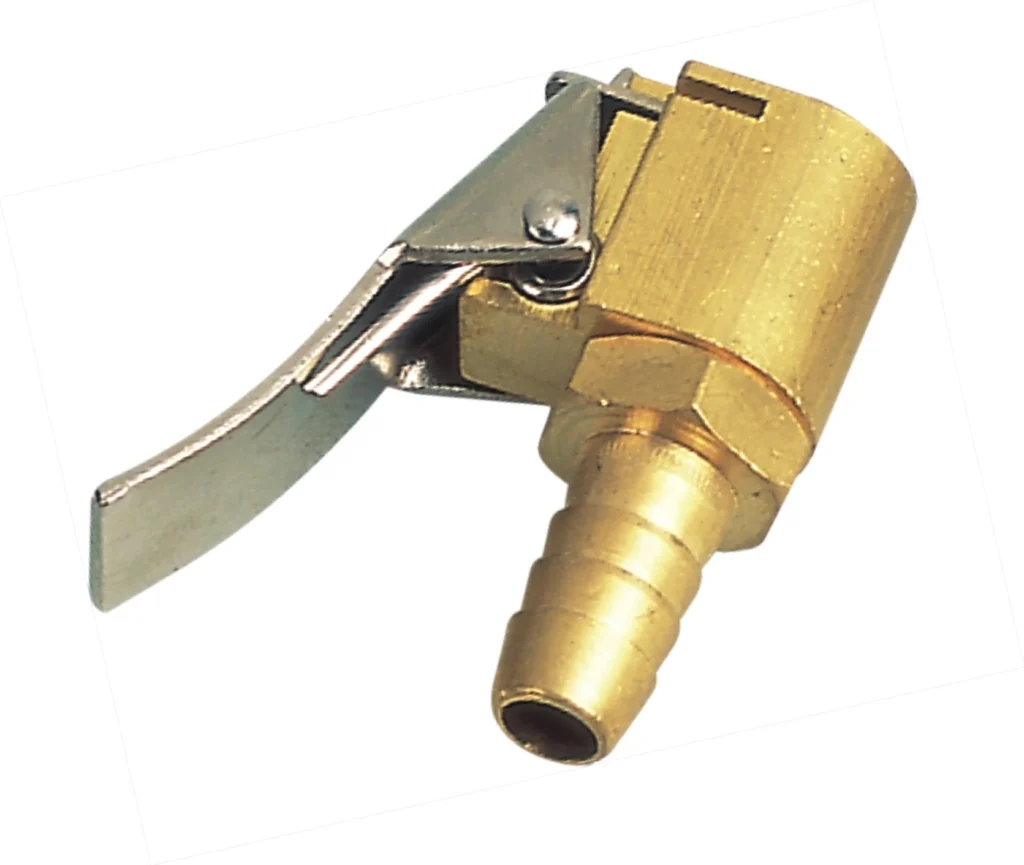

AUTOWIN Ball-Foot Or Clip-On Tire Air Chuck – ATC-09
ATC-09 is an open-flow hose barb air chuck with a listed 5/16-inch connection. Its open valve configuration is the key distinction when comparing it with closed-valve models in the same product range. Buyers should match the stated flow requirement to their inflation equipment, then review the hose interface and valve-access arrangement. Specify ATC-09 with the intended assembly, quantities and packaging requirements when requesting a wholesale quotation from AUTOWIN.
Key Specifications
| Part No. | ATC-09 |
|---|---|
| Product Type | Ball-Foot Or Clip-On Tire Air Chuck |
| Primary Use | routine tire inflation at accessible valve stems |
| Ideal For | tire shops, automotive distributors and service-equipment programs |
| Supply Support | OEM/ODM development for B2B orders |
Overview
The published ATC-09 configuration combines an open valve with a 5/16-inch hose barb. Treat these as separate requirements during selection: the barb identifies the hose-side connection, while the open-valve designation needs to match the inflation equipment. Review the existing air circuit and component requirements before choosing this model as a replacement, particularly where the current equipment was supplied with a different flow configuration.
For distributors, ATC-09 provides a specifically identified open-flow option within the hose-barb air chuck assortment. ATC-08 offers a closed-valve comparison with the same listed nominal barb size, allowing buyers to separate flow selection from the hose connection discussion. Keep both models distinct in catalogues and quotation requests. Include the intended hose arrangement, equipment reference, operating conditions and order quantities when contacting AUTOWIN. Packaging details can accompany the same enquiry so the proposed supply is tied to the required model and application.
Applications
• Inflation-equipment sourcing that calls for an open-valve air chuck.
• Hose-assembly enquiries requiring a compatible 5/16-inch barb connection.
• Distributor ranges distinguishing open-flow and closed-valve tire chucks.
For distributors, ATC-09 provides a specifically identified open-flow option within the hose-barb air chuck assortment. ATC-08 offers a closed-valve comparison with the same listed nominal barb size, allowing buyers to separate flow selection from the hose connection discussion. Keep both models distinct in catalogues and quotation requests. Include the intended hose arrangement, equipment reference, operating conditions and order quantities when contacting AUTOWIN. Packaging details can accompany the same enquiry so the proposed supply is tied to the required model and application.
Applications
• Inflation-equipment sourcing that calls for an open-valve air chuck.
• Hose-assembly enquiries requiring a compatible 5/16-inch barb connection.
• Distributor ranges distinguishing open-flow and closed-valve tire chucks.
Consistent Quality
Controlled manufacturing processes help maintain consistent product quality.
Quality Inspected
Key specifications and workmanship are carefully checked before shipment.
OEM & ODM Support
Custom specifications, branding, packaging, and product solutions are available.
Key Specifications
Connection: 5/16 in hose barb- Valve Type: Open
- Primary Application: routine tire inflation at accessible valve stems
- Open valve configuration is specified for ATC-09.
- 5/16-inch hose-barb connection identifies the hose-side format.
- A model-specific open-flow option within the tire air chuck range.
- Compare flow requirements independently of the nominal barb size.
Model & Specifications
Review the product specifications and enter the quantity required for your quotation.
Swipe the table to view all columns.
| Model / SKU | Specifications | Quantity (pcs) | |
|---|---|---|---|
| ATC-09 |
|
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | ATC-09 |
| Quality Management | ISO 9001:2015 quality management system |
| Inspection Resources | Hydraulic pressure testing equipment for applicable tire-inflation components |
| Customization Support | Product development from customer drawings or samples |
| After-Sales Support | Technical and quality-related follow-up for B2B orders |
| Selection Note | Confirm open or closed operation, chuck style, thread or hose-barb size and pressure requirement before ordering |
Product FAQs
Is ATC-09 a closed-valve tire air chuck?
ATC-09 is listed with an open valve. Use that detail when matching the chuck to the inflation equipment. Review the required flow arrangement separately from the hose connection so the selected component fits the intended assembly specification.
What hose connection is specified for ATC-09?
The published connection is a 5/16-inch hose barb. Provide the intended hose dimensions and retention arrangement when enquiring about assembly fit. Include the equipment reference as well, because the model’s open valve must also suit the application.
Can ATC-09 replace a closed-valve model with the same barb size?
A shared barb size does not establish that different valve configurations are interchangeable. Review the flow requirement of the inflation equipment and the complete assembly details before substitution. ATC-09 should be evaluated specifically as an open-valve model.
What should a wholesale enquiry for ATC-09 contain?
State model ATC-09, the required quantity, intended equipment and hose arrangement. Add the operating requirements and preferred packaging. These details help AUTOWIN review the open-valve configuration and prepare a quotation tied to the actual component request.
