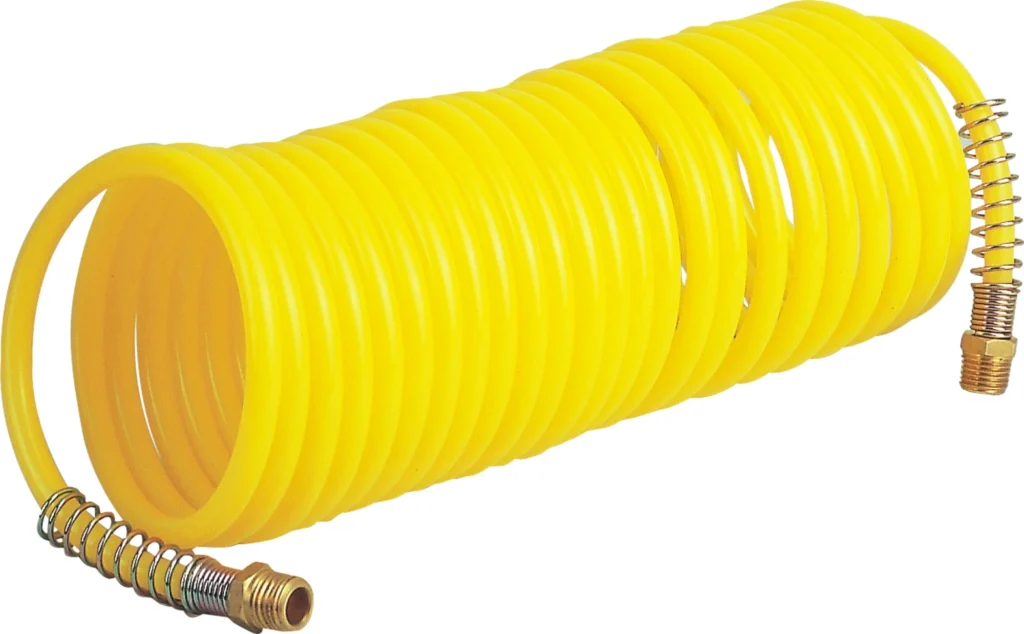

AUTOWIN Nylon Recoil Air Hose - AHC-81 — View Larger Image

AHC-81 1/4-inch Nylon Recoil Air Hose, 15 ft

AUTOWIN AHC-81 is a nylon recoil air hose with a 1/4-inch internal diameter and 15 ft catalog length. It is rated to 200 PSI maximum working pressure and uses two 1/4-inch male NPT ends. The 1/4-inch bore and male NPT ends distinguish AHC-81 from the 3/8-inch, female-thread AHC-87.

Nylon construction in a recoil hose format.
1/4 inch internal diameter; 15 ft catalog length.
200 PSI maximum working pressure; 4:1 catalog safety factor.
Two 1/4-inch male NPT ends.

Specification	Details
Part number	AHC-81
Hose material	Nylon
Hose format	Recoil
Hose internal diameter	1/4 inch
Catalog hose length	15 ft

Quantity

For your quotation request

Request a Quote Download Catalog

Configuration Details
Compare the hose and fitting specifications.
Quote and Availability
Confirm availability for your required order.
OEM Inquiry
Send your drawing, color and packaging requirements.
Order Inspection
Define the checks required for the quoted assembly.

Overview

AUTOWIN AHC-81 is a nylon recoil air hose developed for space-saving compressed-air delivery around workstations. It supports automatic coiling that helps reduce loose hose on the floor. The selected configuration is defined by maximum working pressure 200 PSI, fittings Double 1/4 in MNPT. The product is suited to air-tool distributors, workshops and industrial maintenance buyers building assortments of air compressor hoses, pneumatic air hoses and workshop air lines, replacement lines or OEM/ODM projects.

Purpose-Built Design

Designed for practical and reliable performance in real-world applications.

Consistent Quality

Controlled manufacturing processes help maintain consistent product quality.

Quality Inspected

Key specifications and workmanship are carefully checked before shipment.

OEM & ODM Support

Custom specifications, branding, packaging, and product solutions are available.

Key Specifications

Maximum Working Pressure: 200 PSI
Fittings: Double 1/4 in MNPT
Hose ID: 1/4 in
Length: 15 ft

Technical Specifications

AHC-81 1/4-inch Nylon Recoil Air Hose, 15 ft — Technical Specifications
Specification	Details
Part Number	AHC-81
Safety Factor	4:1
Quality Management	ISO 9001:2015 quality management system
Inspection Resources	Hydraulic pressure testing equipment for applicable hose assemblies
Customization Support	Product development from customer drawings or samples
After-Sales Support	Technical and quality-related follow-up for B2B orders
Selection Note	Confirm hose ID, length, material, fitting size and maximum working pressure before ordering
